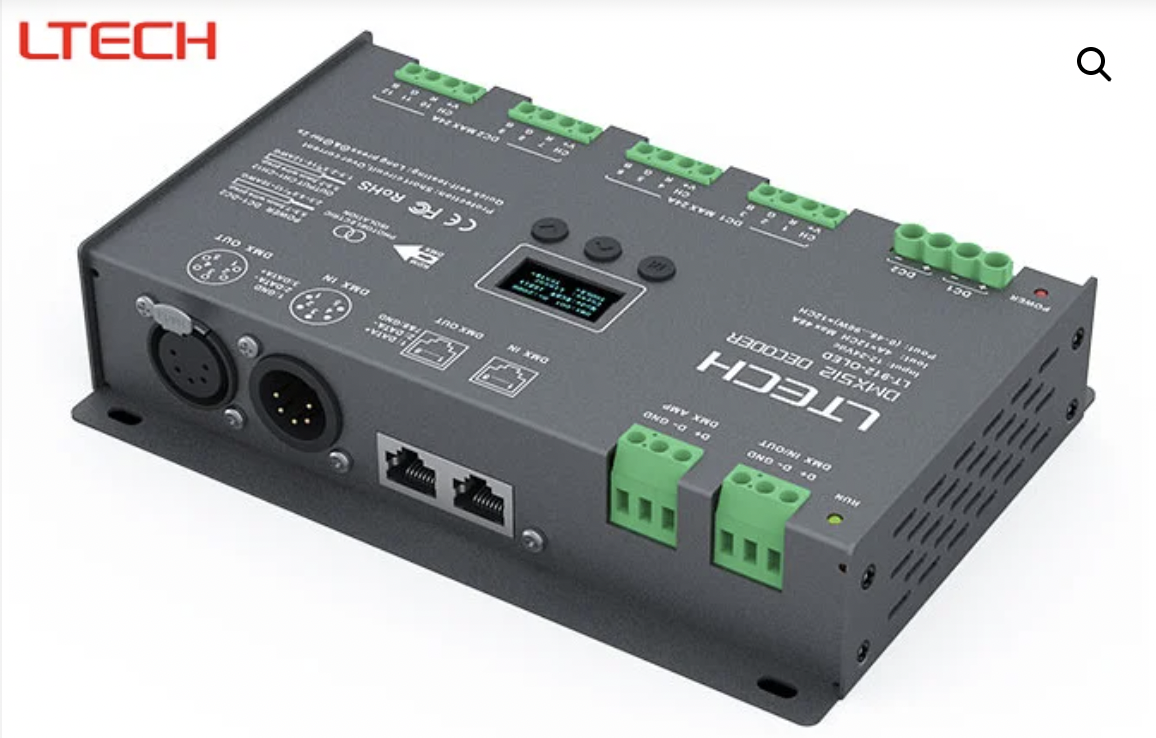

12CH DMX to PWM Decoder

12CH DMX to PWM Decoder

Regular price £172.00 GBP
Regular price Sale price £172.00 GBP
Sale Sold out

+VAT for UK Customers

Non UK orders will have to pay import tax / tariffs on delivery

With 12 output channels, this unit is ideal for controlling larger circuits of RGB, CT or single colour LED Strip. Includes DMX 5-Pin to 3-Pin Cable.

This decoder also has the option to assign multiple channels to one address. Dimming curve options include; standard, linear, LOG, custom 0.1-9.9 dimming curve.

The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 12 channels. DMX connects via standard XLR-5, RJ45 plugs or screw terminals. The low voltage supply and lights connect via screw terminals on the side of the unit. A DMX signal amplifier is also built in to the unit.

The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.

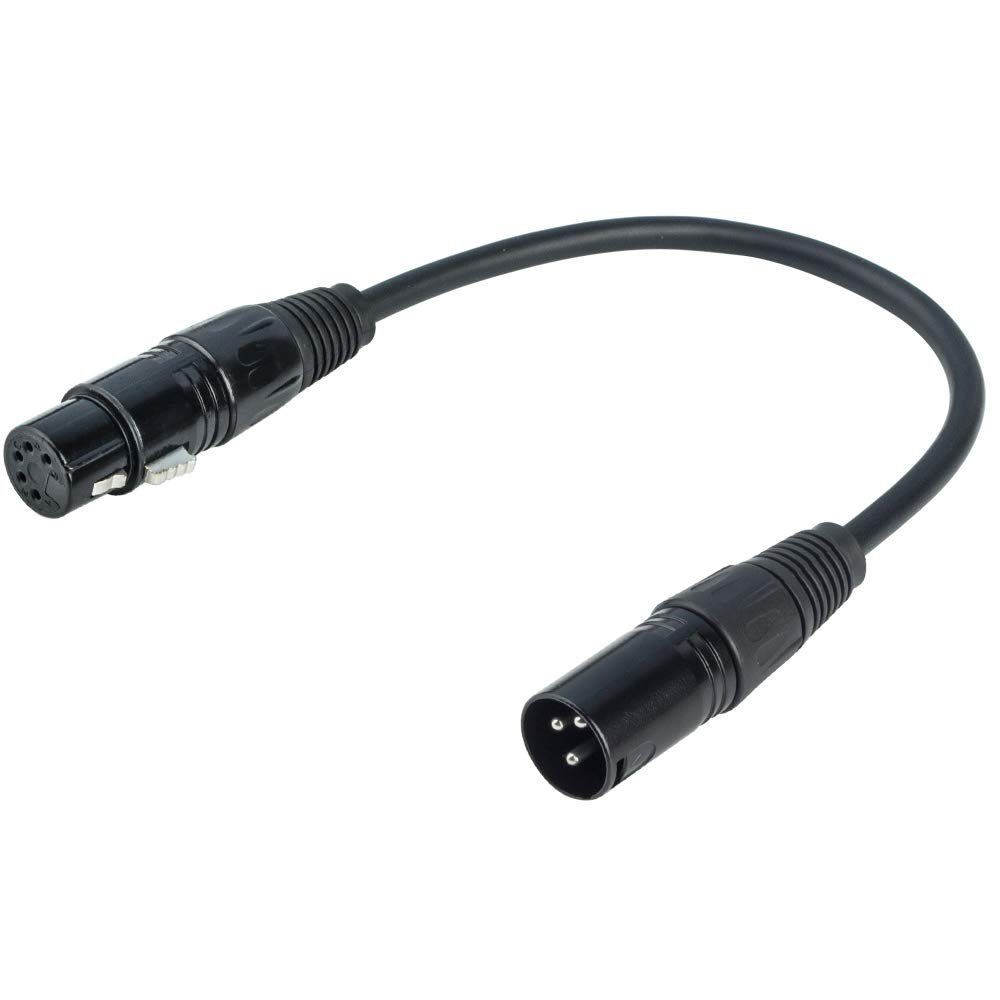

Includes DMX 5-Pin to 3-Pin Cable



Specification

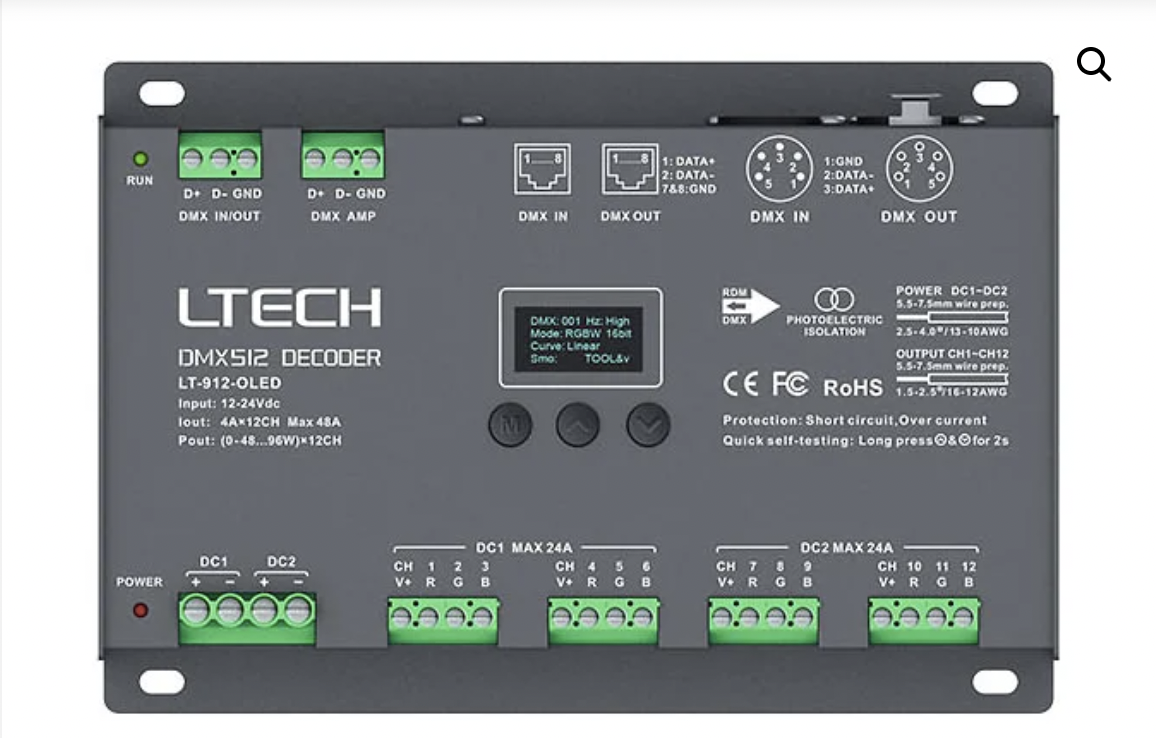

LT-12-OLED Decoder

  • Input signal - DMX512/RDM

  • Voltage 12V~24V DC

  • Output - Constant Voltage

  • Channels - 12

  • Current - 3A× 12CH Max 48A

  • Max output power - 576W/1152W(12V/24V)

Dimensions

180mm x 122mm x 39mm - 0.7kg
