240V 10A AC Relay (for Digital Master)

Includes 3.5mm trigger cable to connect to a Digital Master output channel.

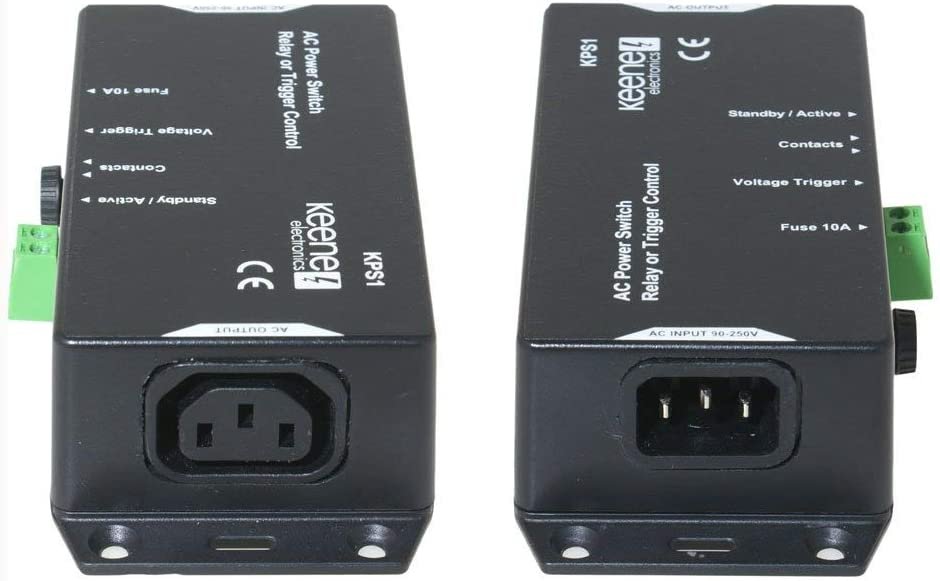

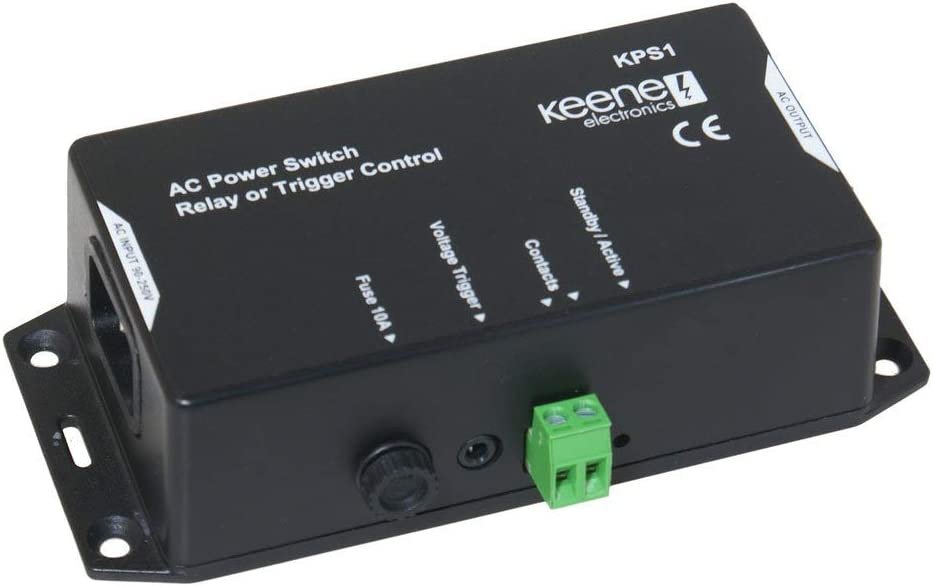

The Keene Powerswitch is a high quality mains power connector block designed for easy switching of AC power up to 10A*. The output can be switched on or off by contact closure or a low voltage trigger. Both the Live and Neutral lines are switched by a real air gap mechanical relay with multiple contacts for reliable operation.

VOLTAGE TRIGGER

Use a 3.5mm jack cable to connect to a Digital Master output channel. It does not matter if its mono (2 pole) or stereo (3 pole). It does not matter which two wires you use and it does not matter which way around you connect them, the KPS1 will automatically deal with it.

SAFE

The jack plug connections are completely isolated from the mains and safe to touch.

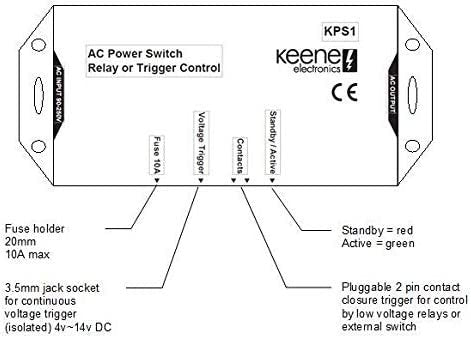

FEATURES

• 2 pin contact closure trigger for control by low voltage relays or external switch. Ground referenced 6V sense voltage.

• 3.5mm jack socket for continuous voltage trigger (isolated) 4V ~ 14V DC with automatic polarity and pin selection.

• Both Live and Neutral are switched.

• World Wide operation 90v - 250V AC 50 or 60 Hz.

• Efficient switch mode isolated internal 6V power supply.

• Built in replaceable 20mm fuse.

• Built in 250V AC varistors for mains spike suppression.

• Insulated plastic brick design with 3 pin IEC input and output for easy installation

PACKAGE INCLUDES

• 1 x KPS1,

• 1 x IEC female to UK 3 pin plug mains input cable

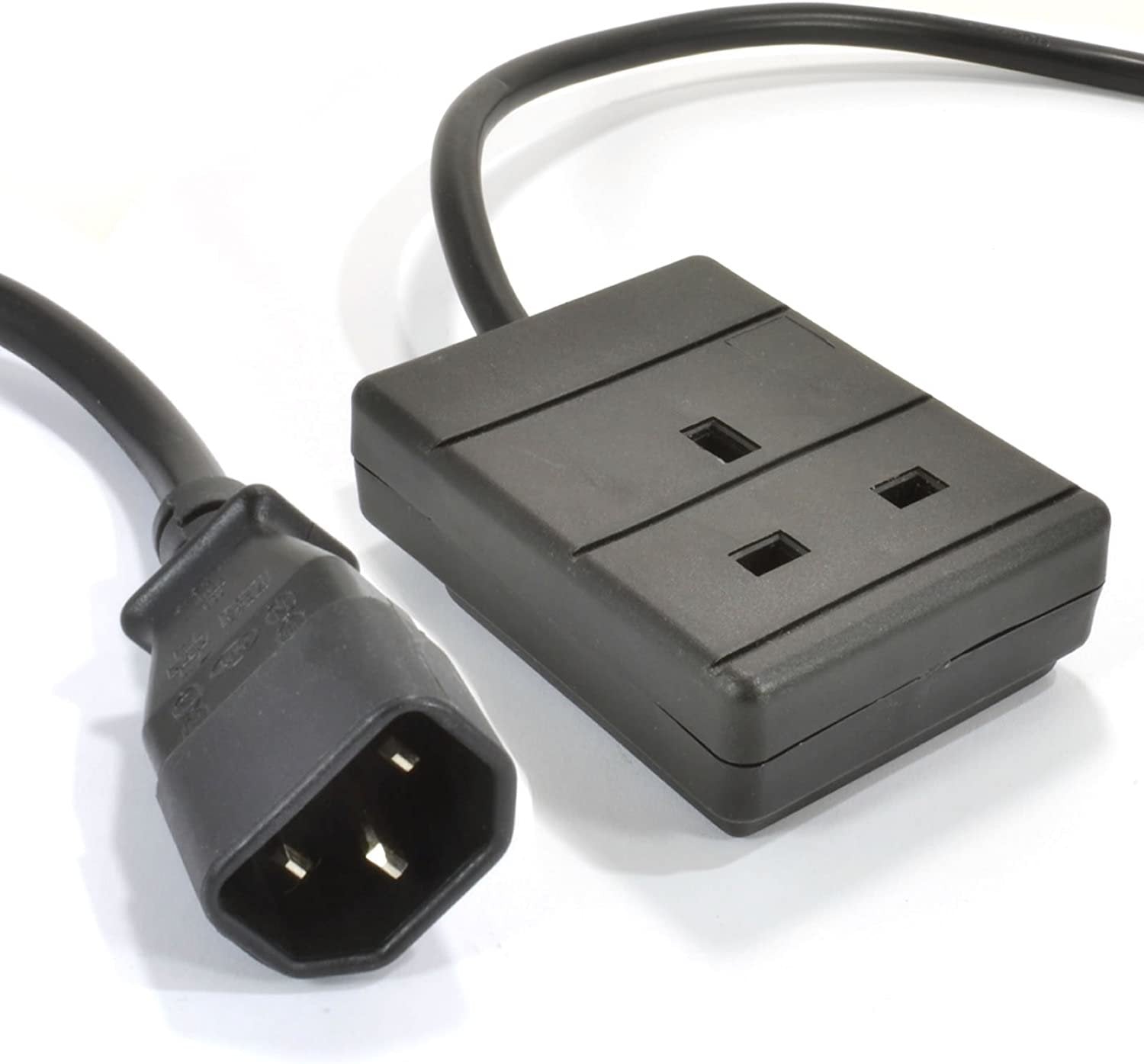

• 1 x IEC female to UK 3 pin plug socket adaptor

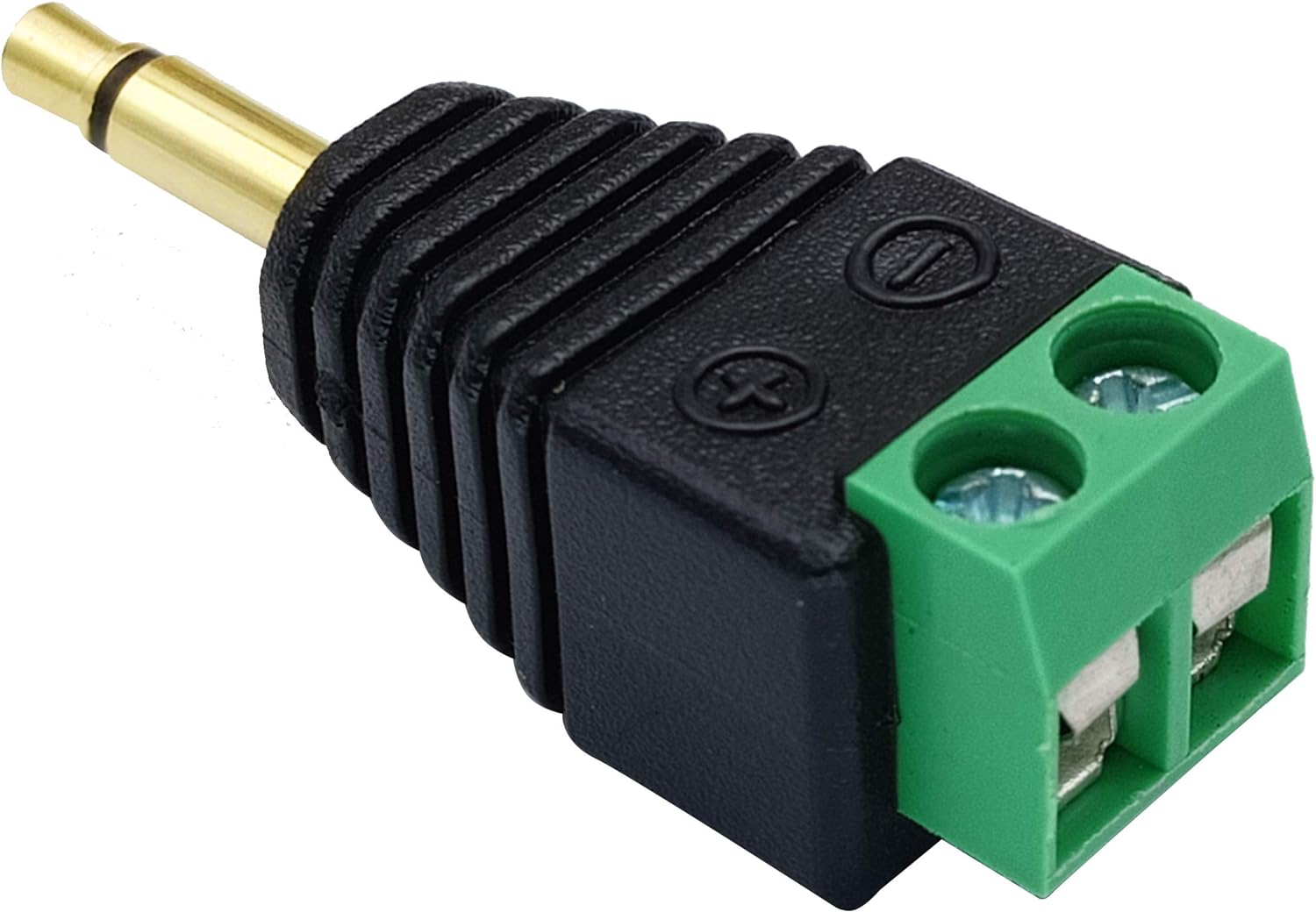

• 1x 3.5mm Screw Terminal (1/8") Mono Male to 2 Pin Female Screw Terminal
