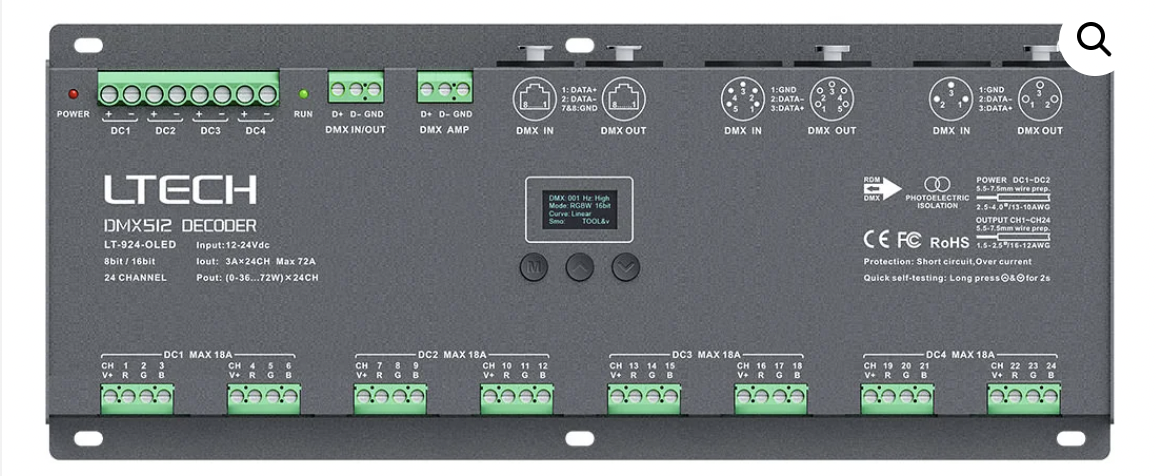

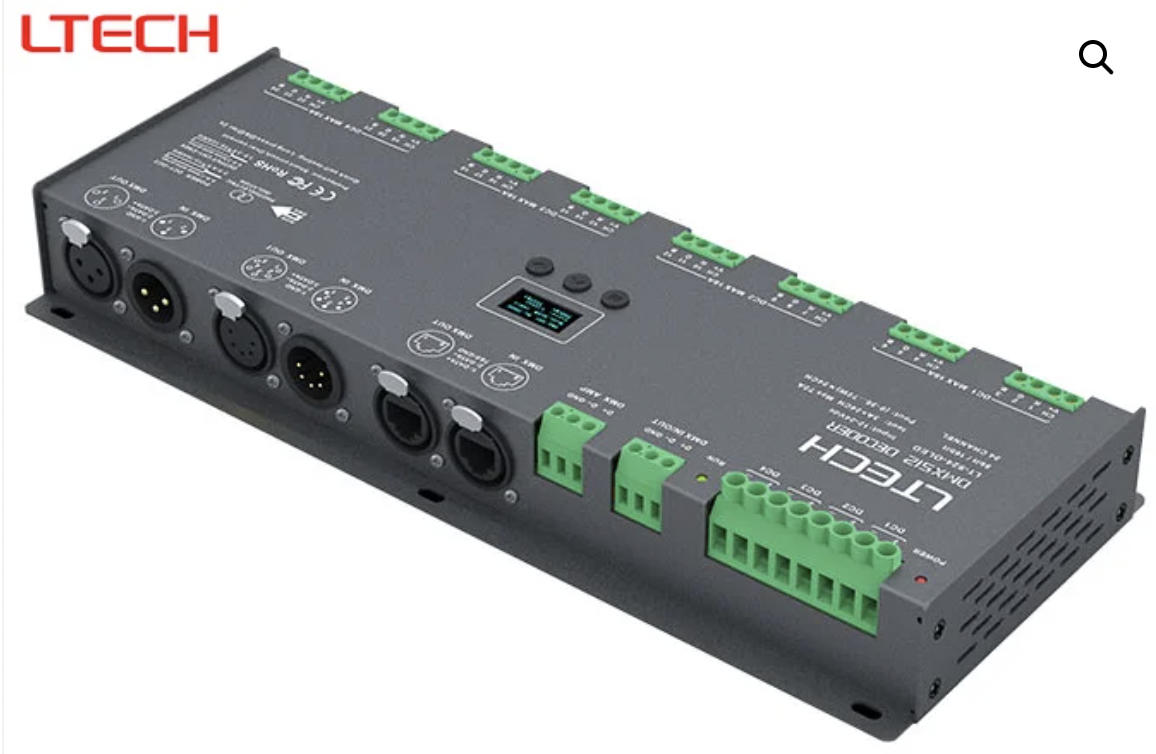

24CH DMX to PWM Decoder

DMX decoder for low voltage circuits. With 24 output channels, this unit is ideal for controlling larger circuits of RGB, CT, or single colour LED Strip.

This decoder also has the option to assign multiple channels to one address. Dimming curve options include; standard, linear, LOG, custom 0.1-9.9 dimming curve.

The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 24 channels. DMX connects via standard XLR-3, XLR-5, RJ45 plugs or screw terminals. The low voltage supply and lights connect via screw terminals on the side of the unit. A DMX signal amplifier is also built in to the unit.

The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.

Specification

LT-24-OLED Decoder

• Input signal - DMX512/RDM

• Voltage 12V~24V DC

• Output - Constant Voltage

• Channels - 24

• Current - 3A× 24CH Max 72A

• Max output power - 864W/1728W(12V/24V)
