Clockwork Dog

Digital Relay Module

Digital Relay Module

£4.00 GBP
£4.00 GBP
Sale Sold out

+VAT for UK Customers

Non UK orders will have to pay import tax on delivery

For use with the Sensor Master.

SPECIFICATION

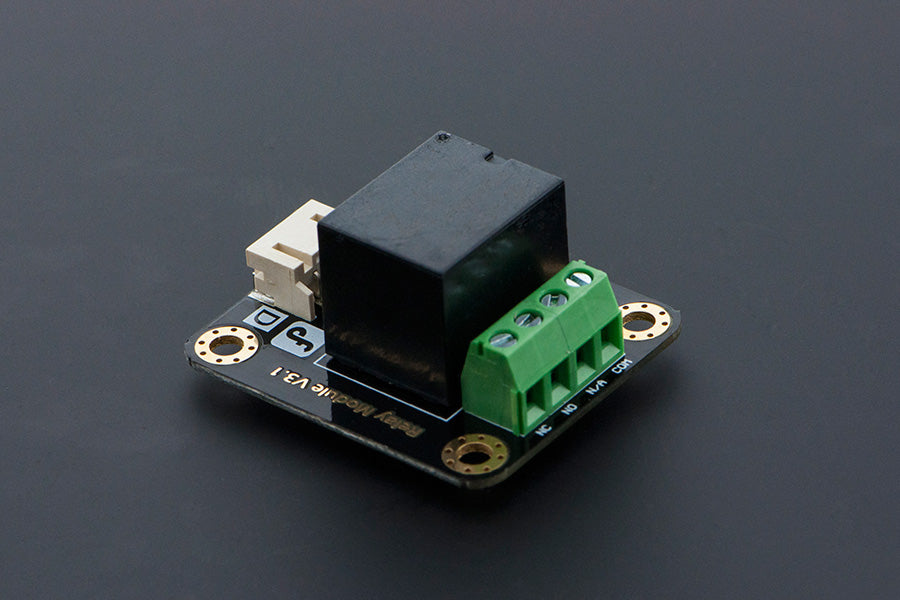

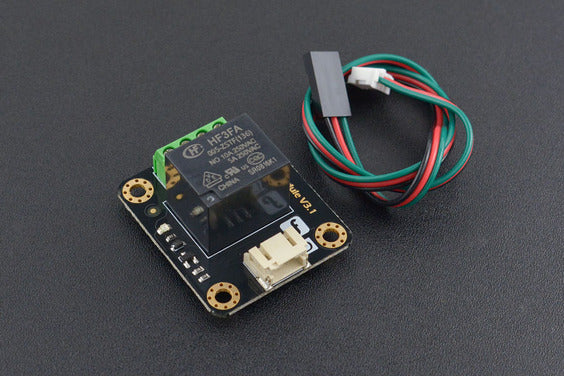

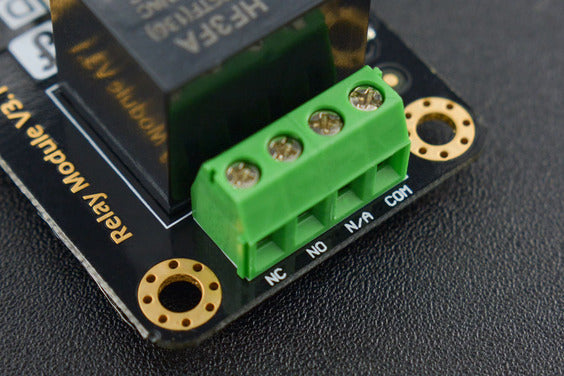

  • Single relay board
  • Rated through-current: 10A (NO) 5A (NC)
  • Maximum switching voltage: 150VAC 24VDC
  • Interface: Digital
  • Control signal: TTL level

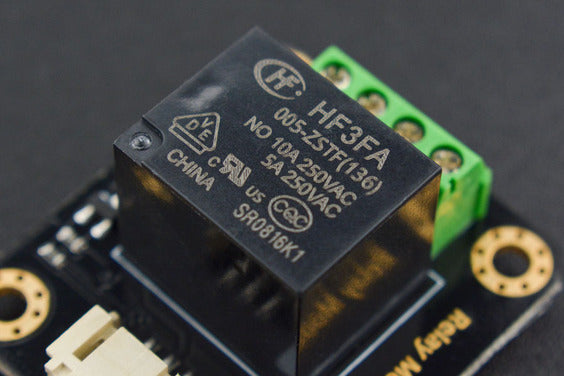

  • Contact Rating (Res. Load): 10A 250VAC / 24VDC
  • Max. switching voltage 250VAC / 30VDC
  • Max. switching current 15A
  • Max. switching power 250VA 240W
  • UL Rating: 10A 120VAC / 10A 250VAC
  • Operate time (at nomi. Vot.): 10ms
  • Release time (at nomi. Vot.): 5ms

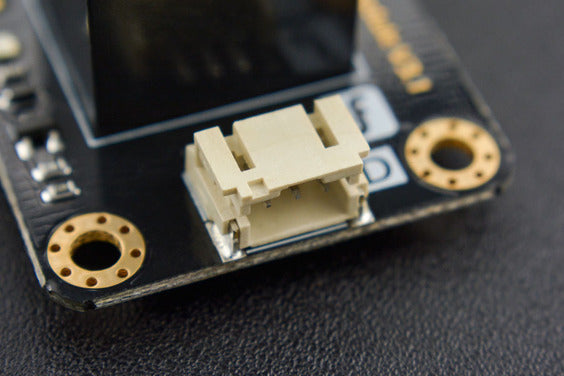

  • High quality connector
  • Immersion gold surface

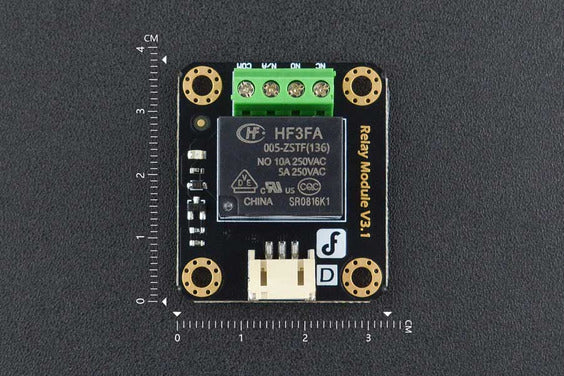

Dimensions
