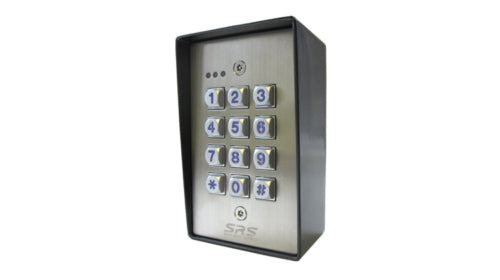

Digital Keypad

The Digital keypad K301A is an IP66 rated 12v-24v AC/DC fully featured self-contained high security digital keypad with 1.5mm stainless steel facia.

Main features
Rain hood: Yes
Input: 12v-24v AC/DC auto adjusting input
Current rating: 20ma (Standby) - 90ma @12v dc, 10ma (Standby) - 45ma @24v dc
IP rating: IP66, weather resistant and vandal resistant
Keypad: Back - lit blue illuminated button keypad with 1.5mm stainless steel facia
Back box: Die cast and powder coat painted black surface mount
User codes: 1000 User codes for relay 1 and 100 user codes for relay 2
Relay outputs: Two, 1 x 5 and 1 x 1amp relay output with N.C. & N.O. contacts
Relay output timers: Two from 1 second up to a possible 99,999 seconds (Over 24hours)
Exit button input: Yes
Fitting: Surface mount
Size: 125h x 79w x 46/54d (bottom side/upper side) mm

A) All features are keyboard programmable
B) Non-volatile memory in the event of a power failure
C) 3 LED display indication status
