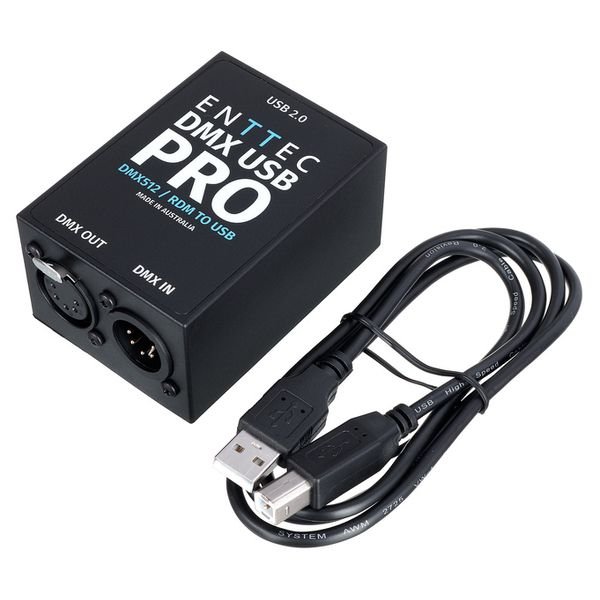

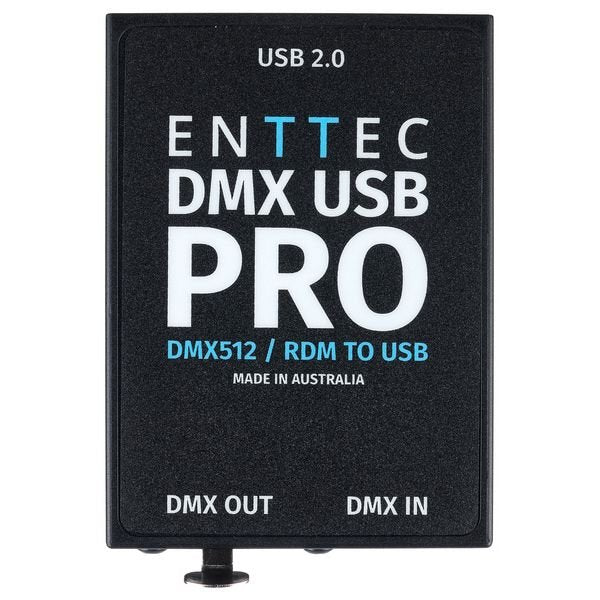

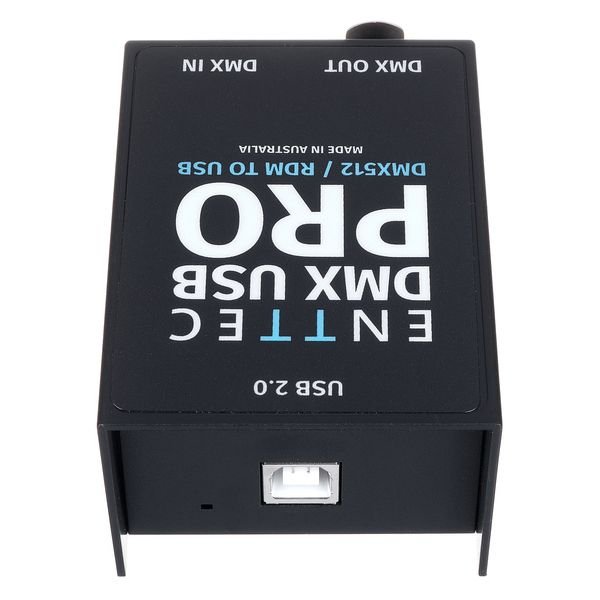

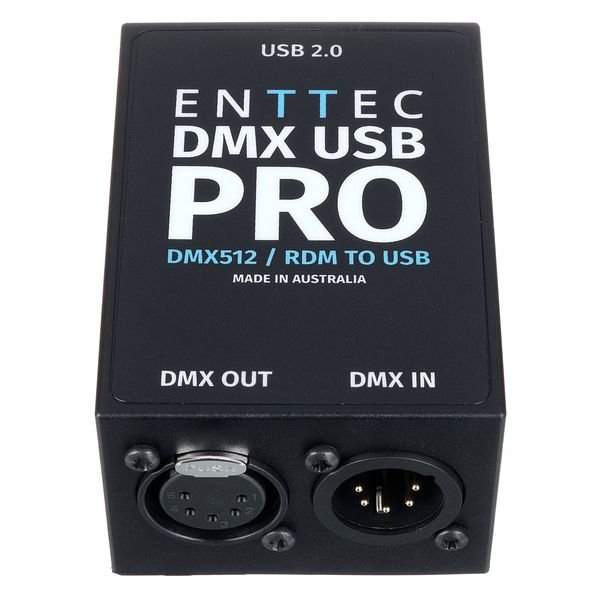

DMX USB Pro - Dongle

Allows you to control DMX out of your PC

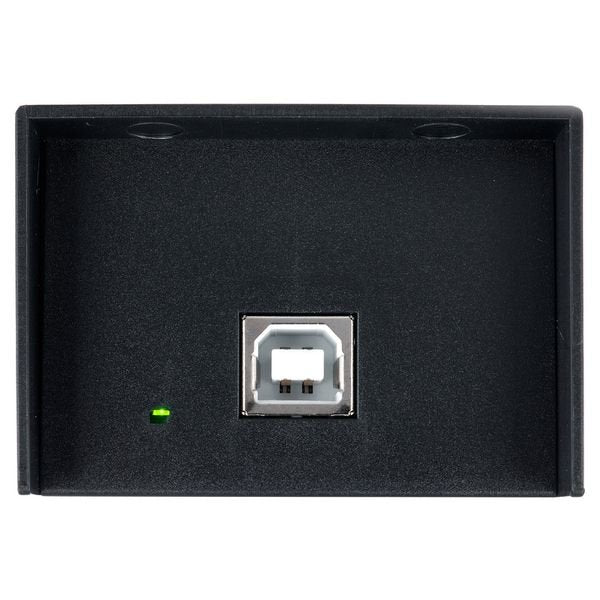

Connects to your PC via a USB port. COGS will automatically recognise it as a DMX device.

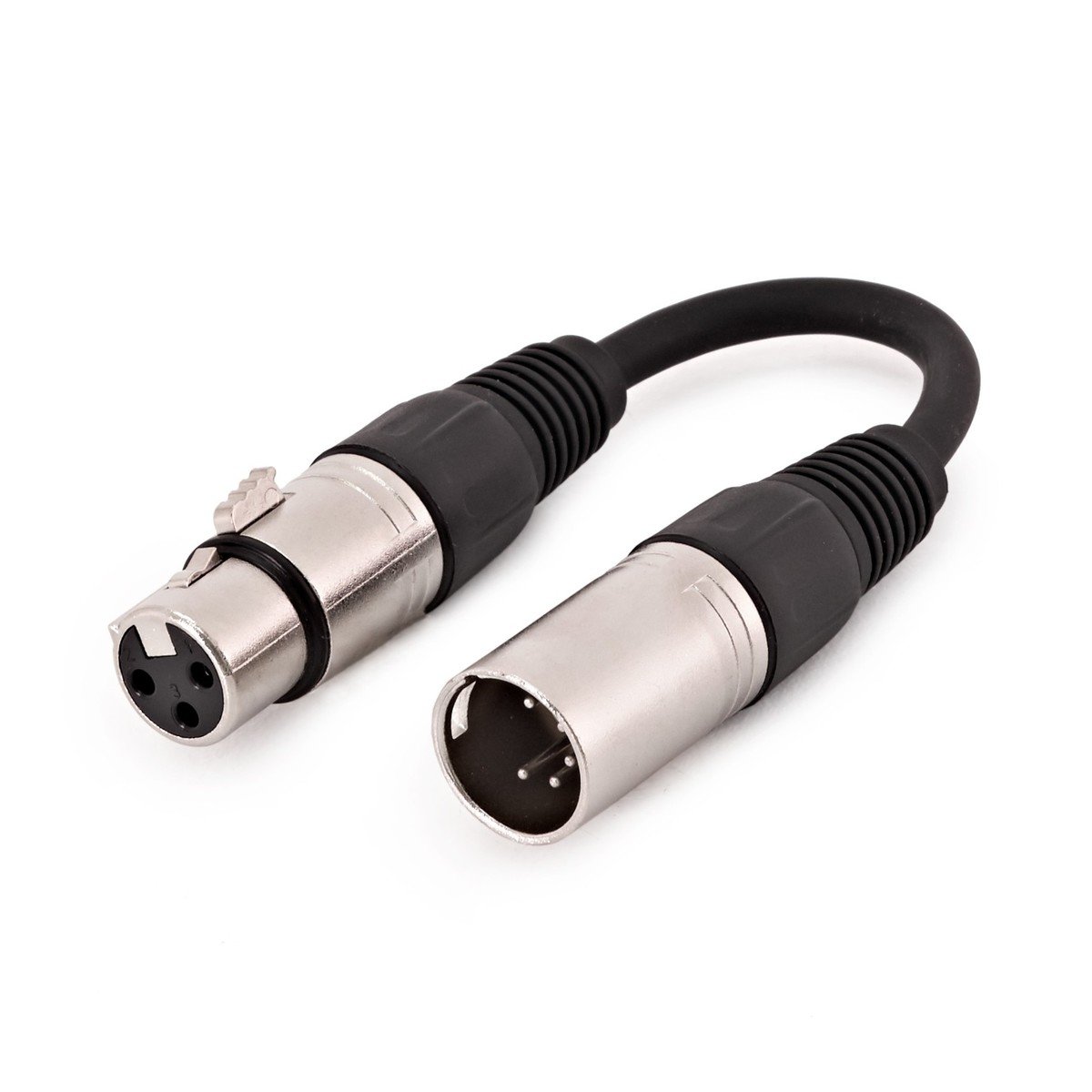

Comes with a 5pin to 3pin DMX cable.

512 DMX channels (1 universe) either as input or output

• Fully compliant with USITT DMX512-A

• Output refresh rate configurable from 1 to 40 FPS

• Configurable MAB and break time with ENTTEC's EMU software to support non-standard fixtures

• Supports Windows, MacOS & Linux

• 1500V full isolation (data and power lines to protect your computer from surges)

• RDM capable (ANSI E1. 20 compliant)

• Drivers for Windows, MacOS and Linux (drivers are published and maintained by FTDI)

• Compatible with various open-source and professional lighting control programs

• Developer API available for integration into your own software

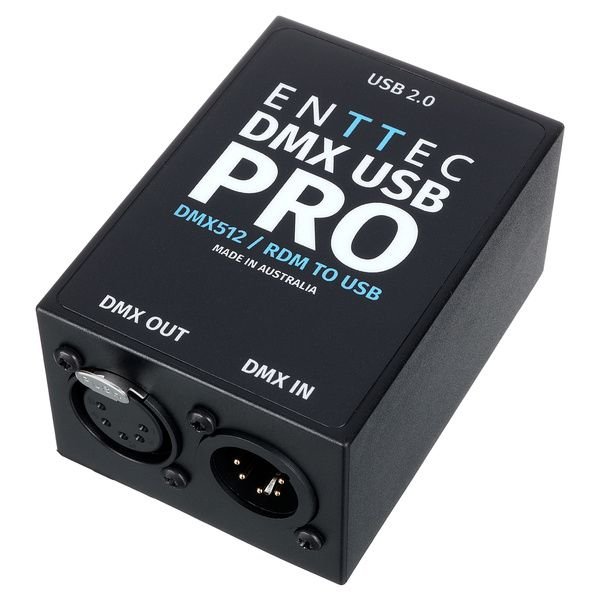

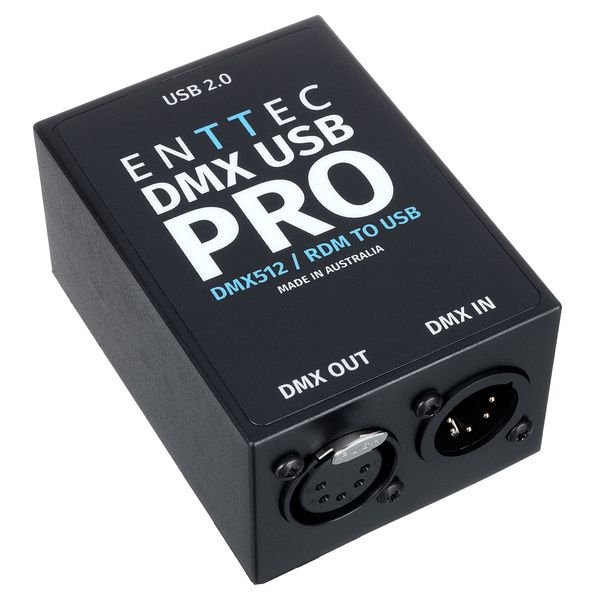

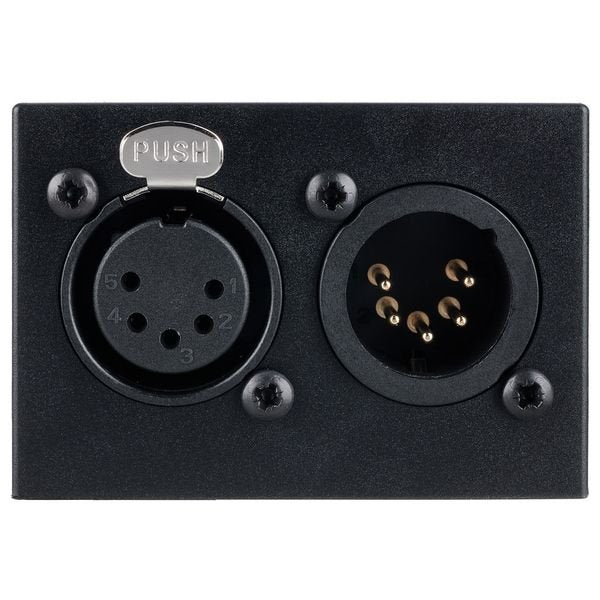

• Connectors: 1x 5-pin XLR female DMX output, 1x 5-pin XLR male DMX input

• IP protection: IP20

• Maximum output channels: 512

• Max. output frame rate: 40 Fps

• Input voltage: 5V DC (via USB)

• Input power: 300 mA

• Power consumption: 1.5 W
