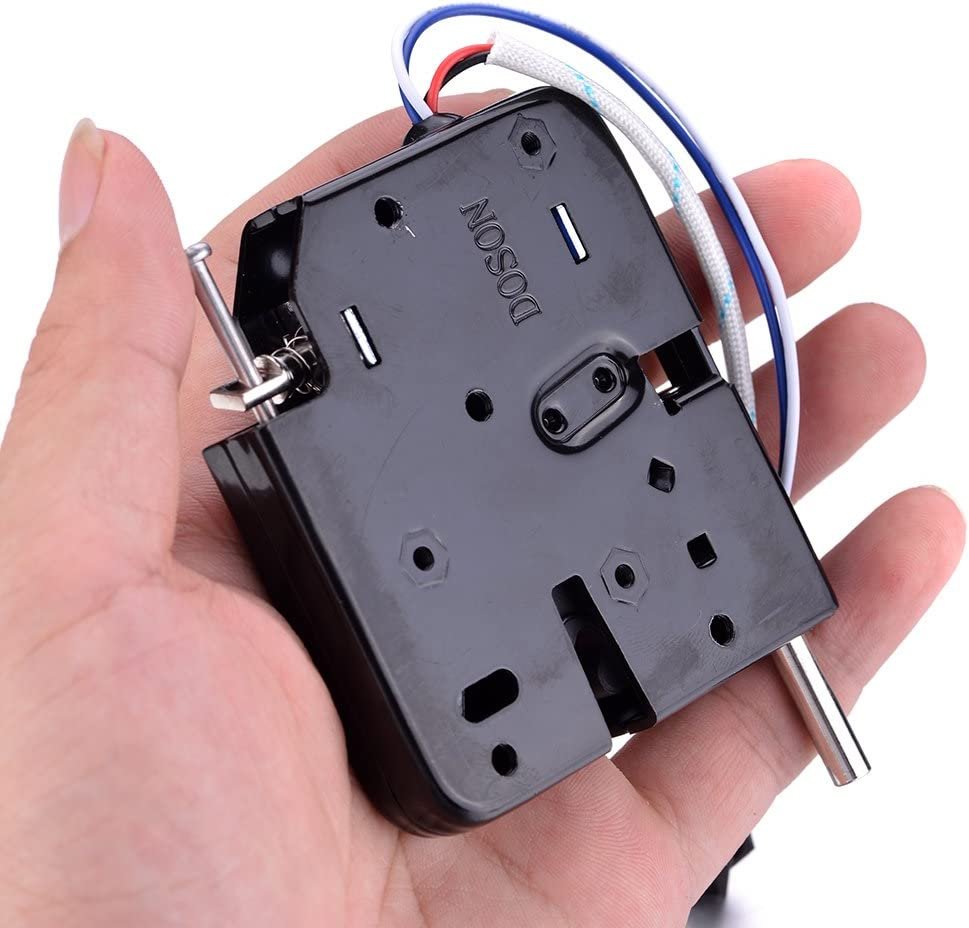

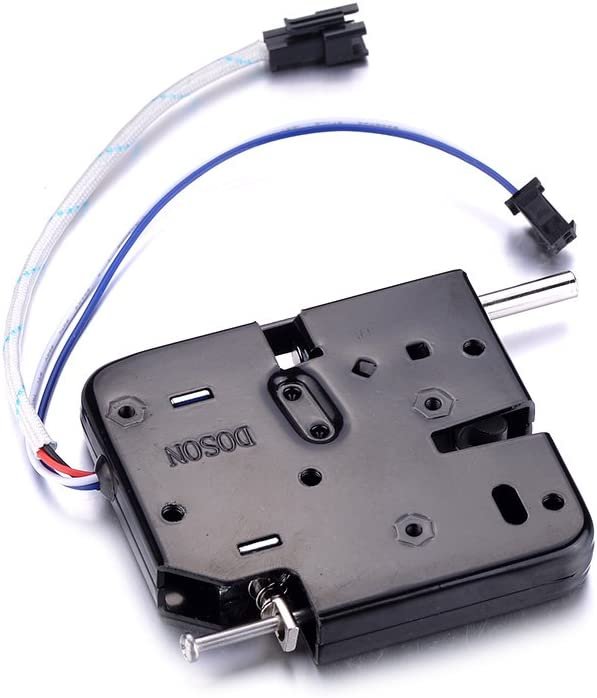

Electronic Cabinet Lock w/ feedback

A solenoid momentary ‘magcatch’ for cabinets with a switch for feedback.

Automatic unlocking: when the power is turned on, the door will be opened automatically, so that the power supply can be disconnected immediately.

Note: The electromagnetic lock uses a trigger structure, so we recommend when adding this digital output channel to COGS tick the box to 'return to default' in the channel settings. This will stop the Magcatch from burning out.

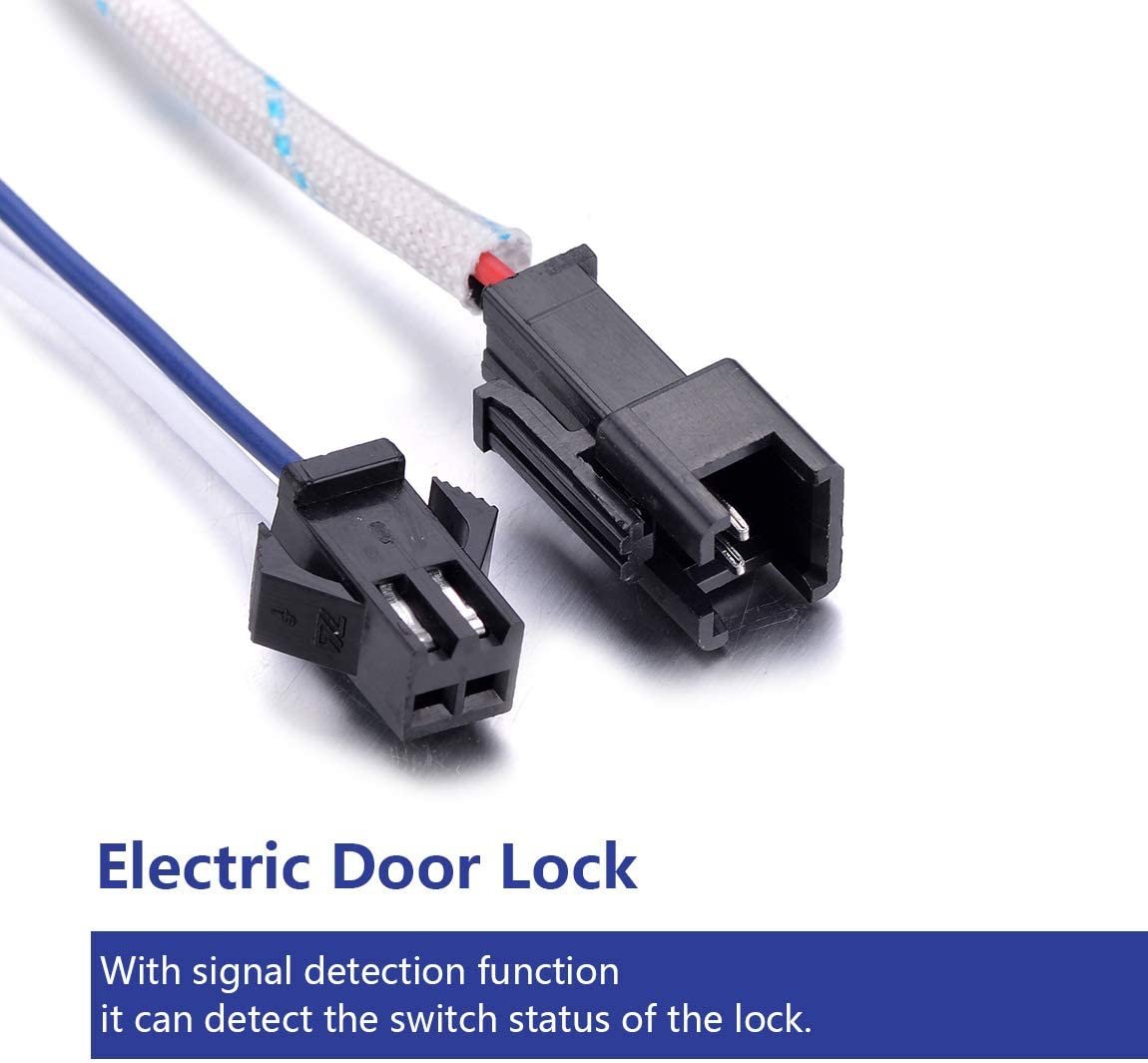

The blue and white cables are the feedback. If attached to a Digital Master this allows COGS to see if the cabinet is open or closed.

• Material: iron.

• Rated voltage: DC 12V.

• Rated current: 2A.

• Length of wire: 15cm.

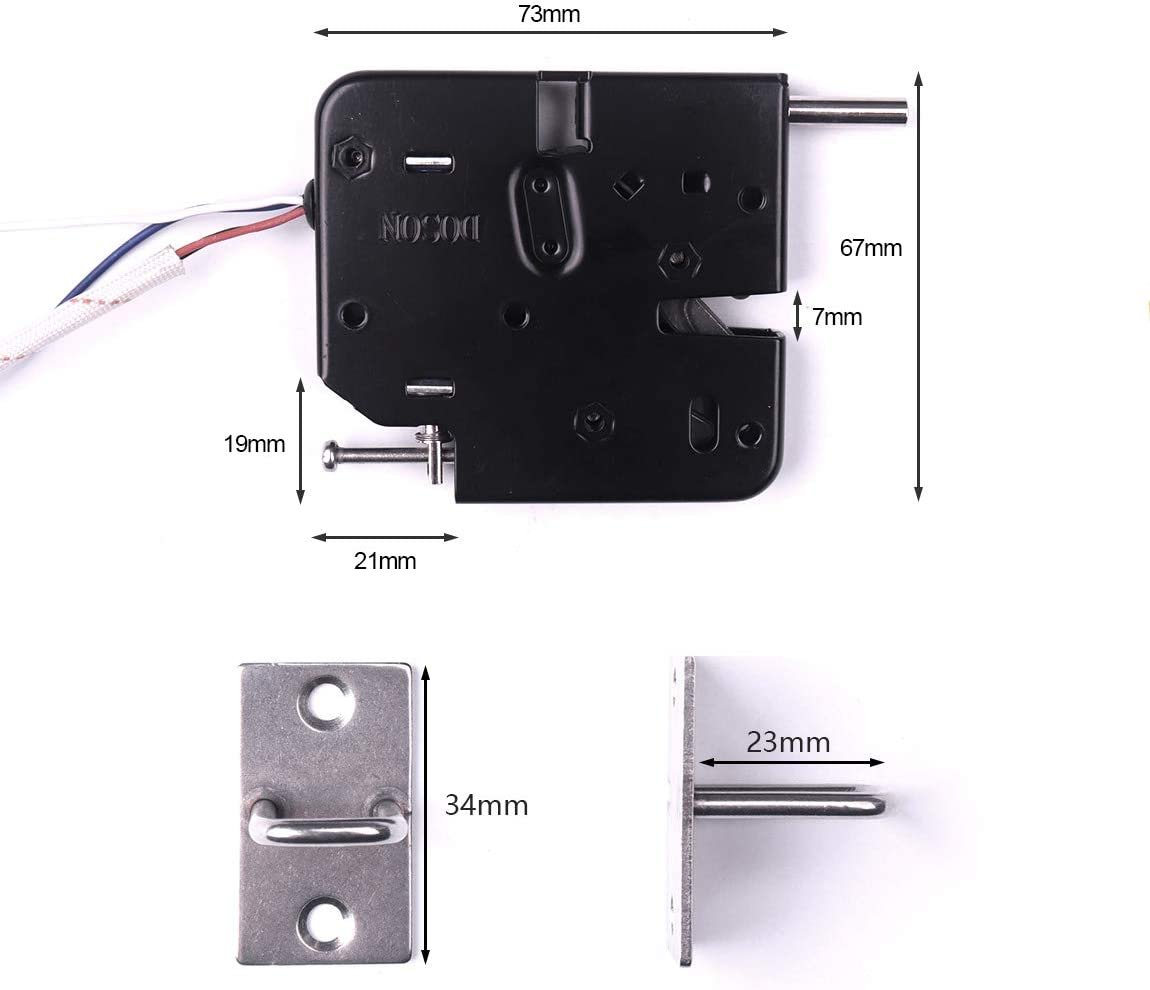

• Diameter of installation hole: 4mm.
