Media Master

Manages audio & video outputs and/or self made custom web content (e.g timers & hint screens, touchscreens)

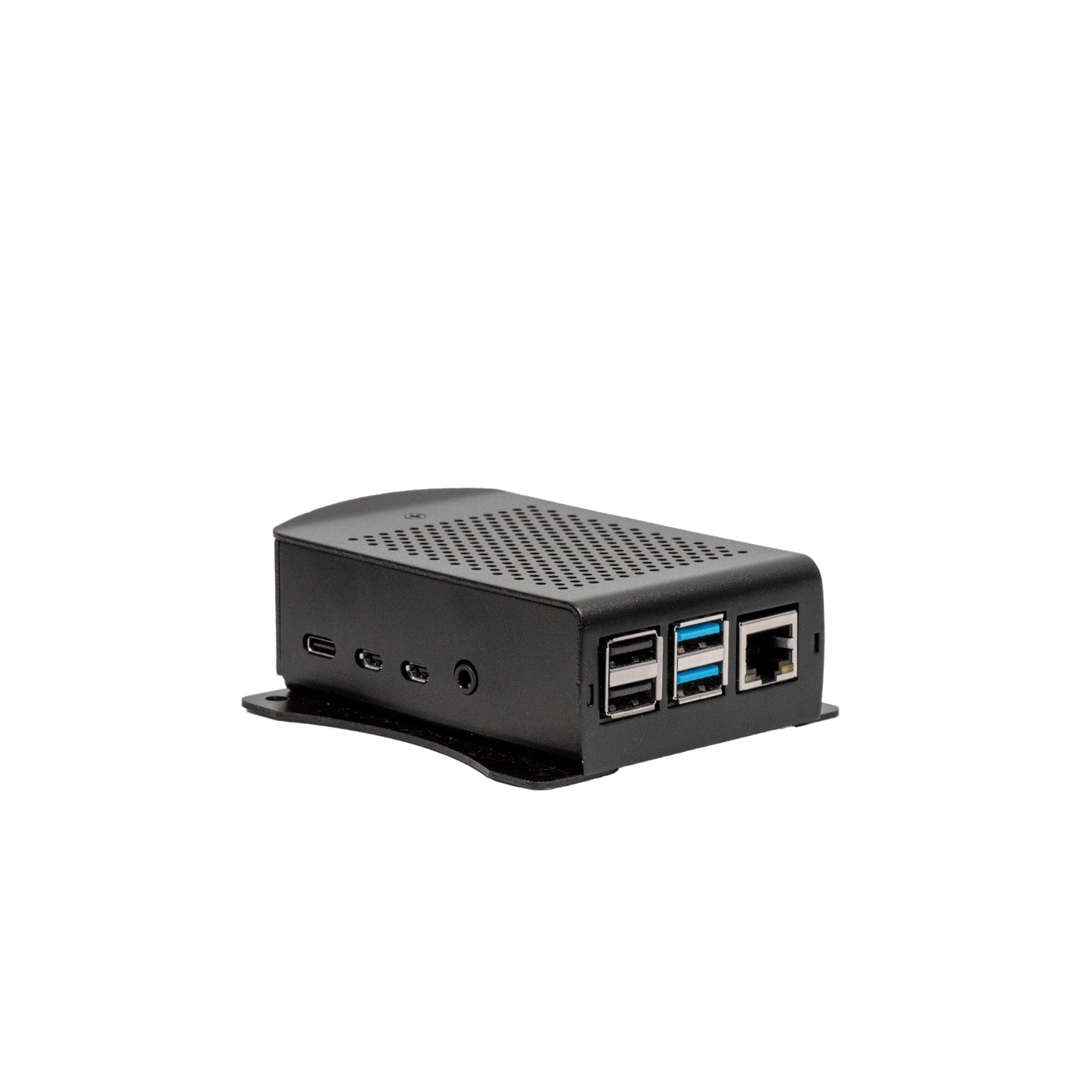

Raspberry Pi running a proprietary COGS image. Assembled into a case with VESA mount attached. Pictured case is no longer used, but a similar case is provided.

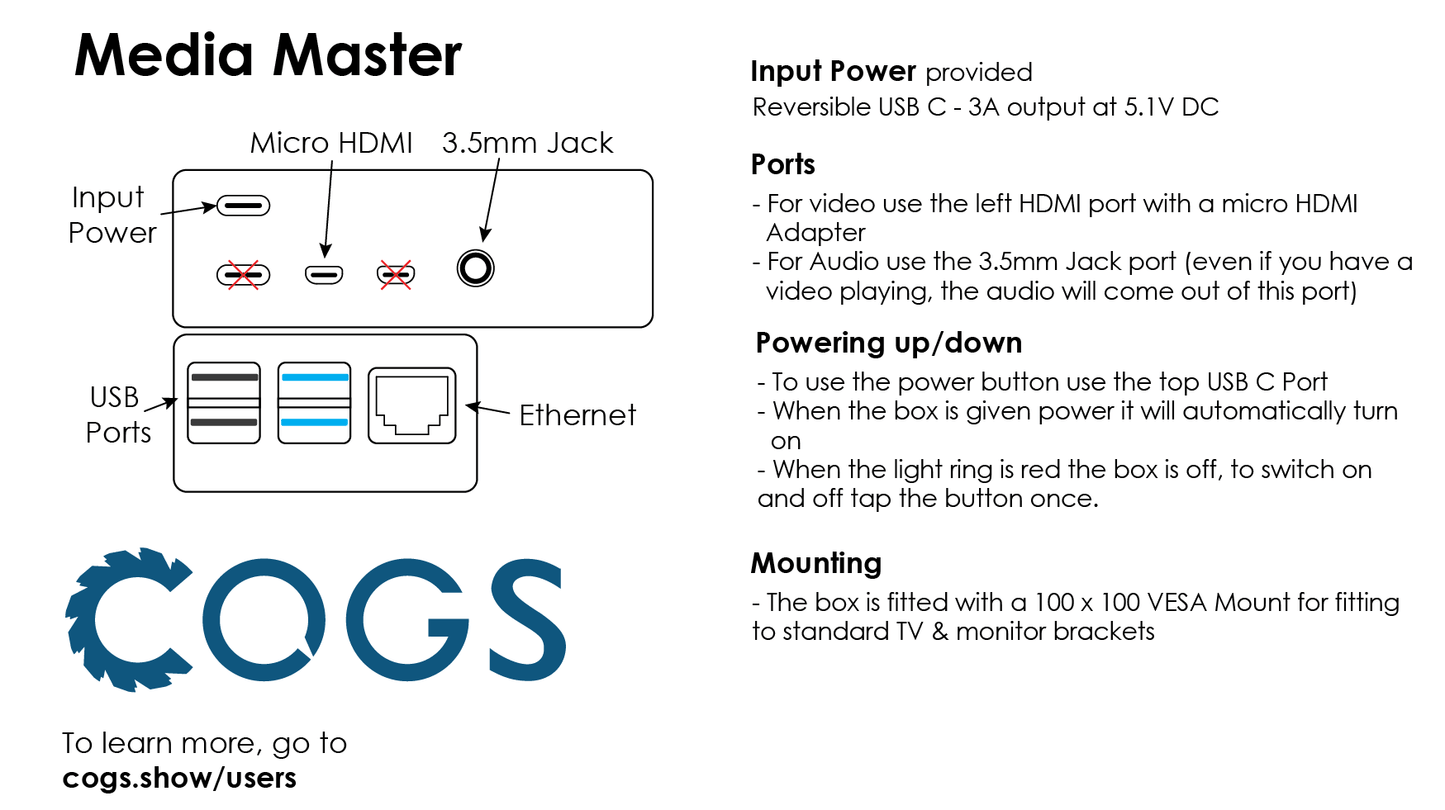

Power: 5.1v DC via USB-C connector

Channels:

• 1x video out via micro-HDMI port (only LEFT port supported)

• 1x audio out via 4-pole 3.5mm stereo socket

Supplied with: 5.1v 3A USB-C power supply (UK/EU/US plug)

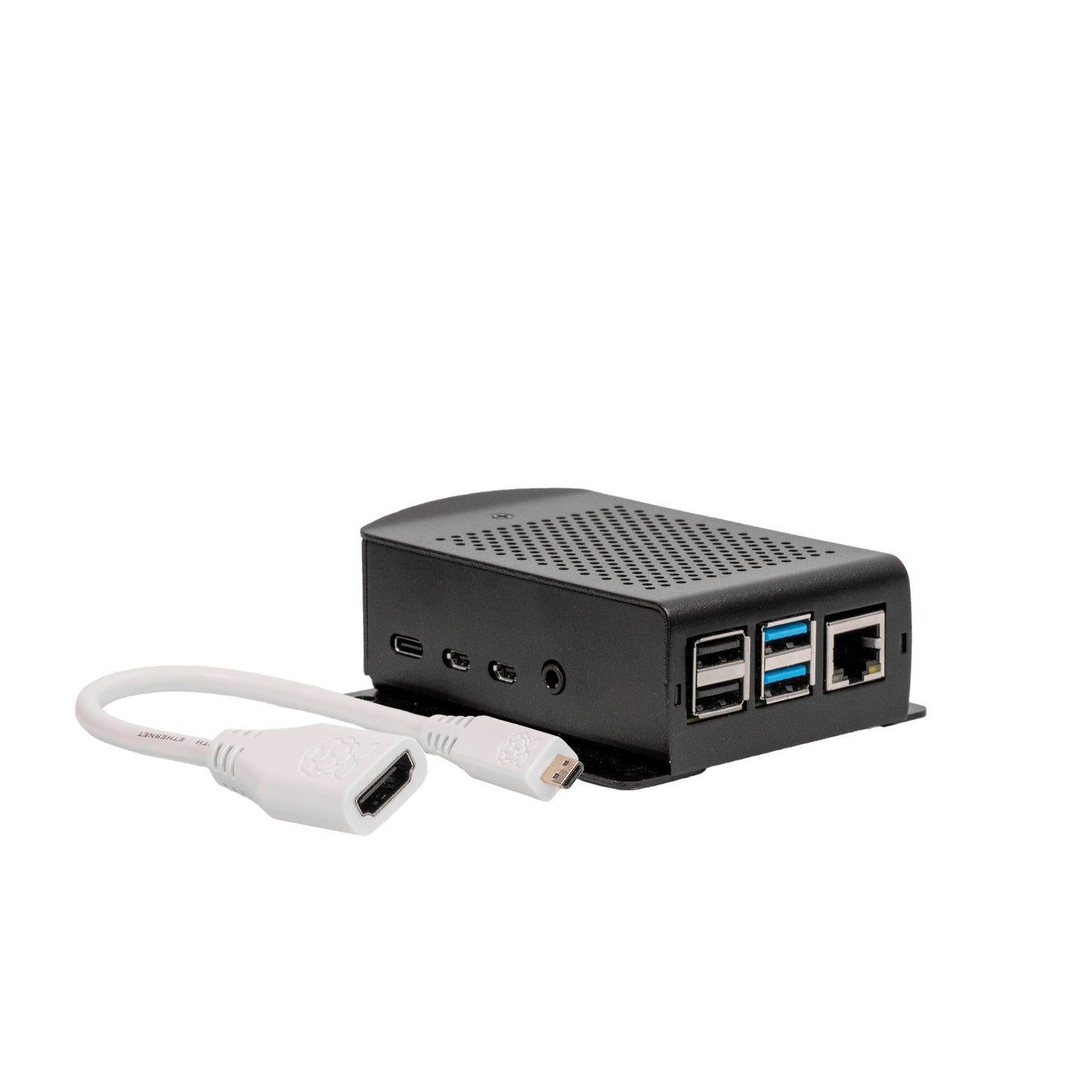

Optional: Micro HDMI to HDMI Adaptor cable

Watch the Media Master (Audio) tutorial here.

Watch the Media Master (Video) tutorial here.

We donate £5 to the Raspberry Pi Foundation with every purchase
