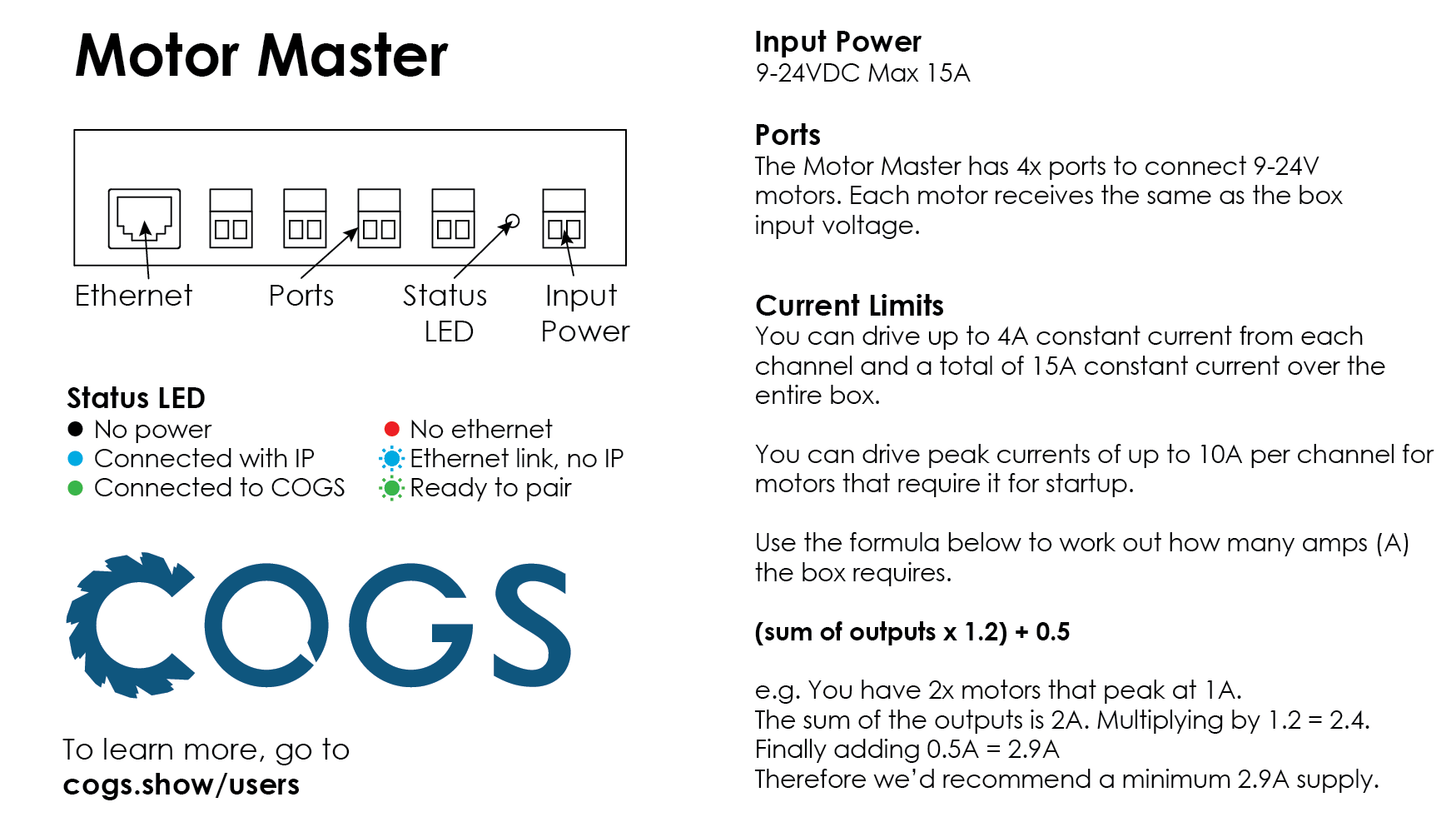

Forward & reverse control for 4 DC motors (9-24v)
Power: 9-24v DC Max 15A (push terminal)
Voltage in = voltage out across all channels
Output channels: 4x DC push terminal (Max 4A constant load per channel)
This is a solid state device which means you can vary the speed of each motor
All push terminals support cable sizes in the range of 0.33-2mm², either solid or stranded
Dimensions
Dimensions
134mm x 88mm x 40mm - 0.2kg
