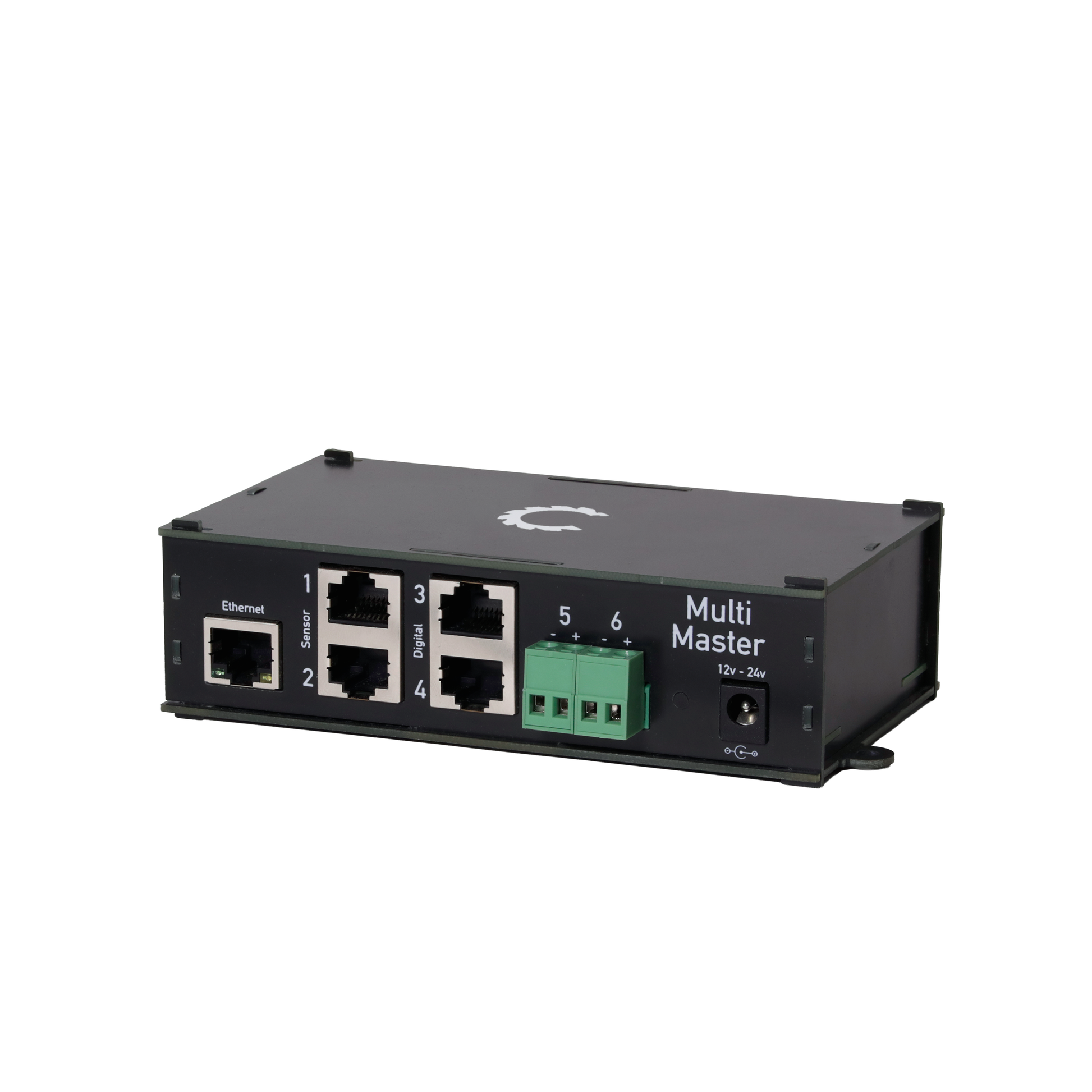

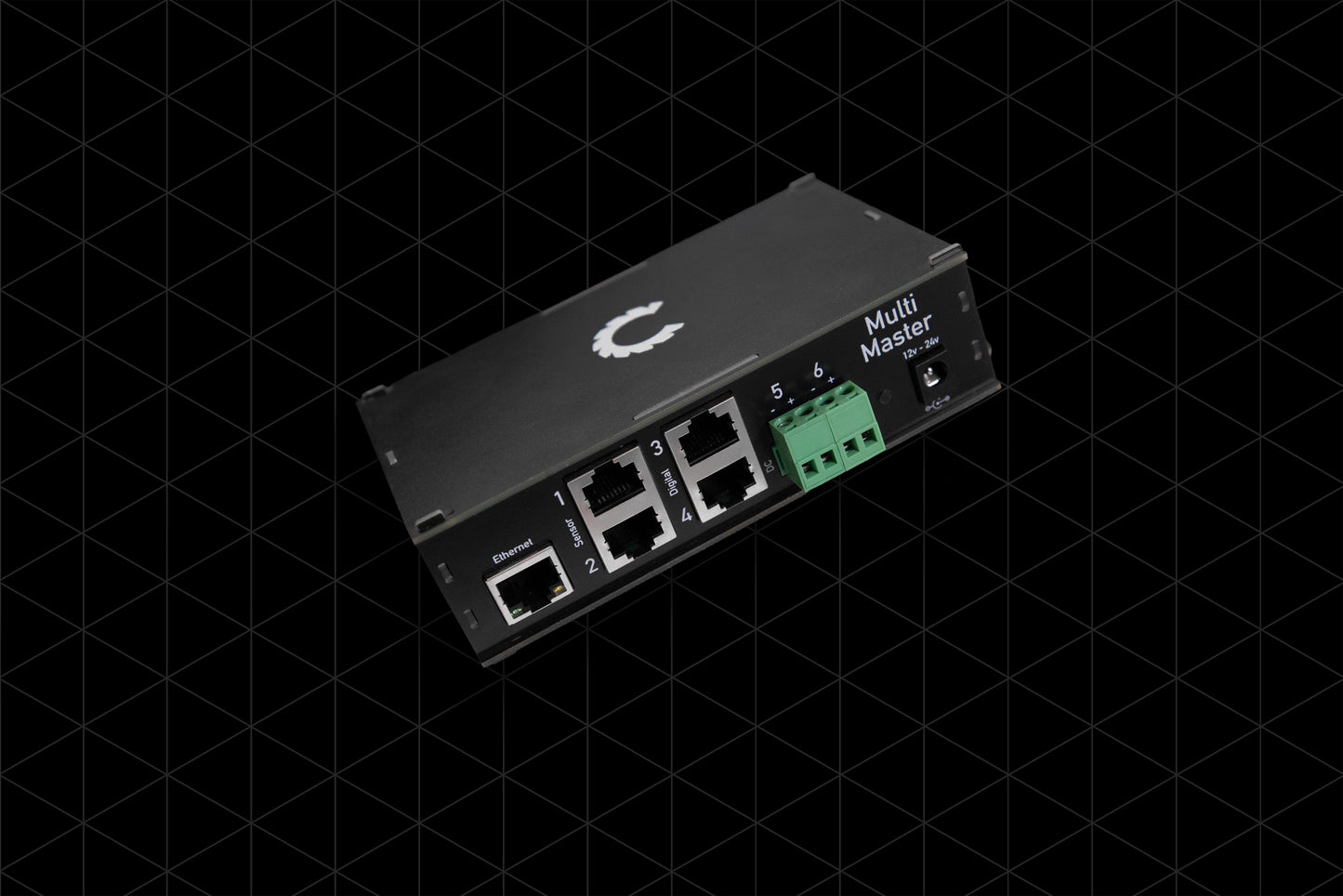

Multi Master

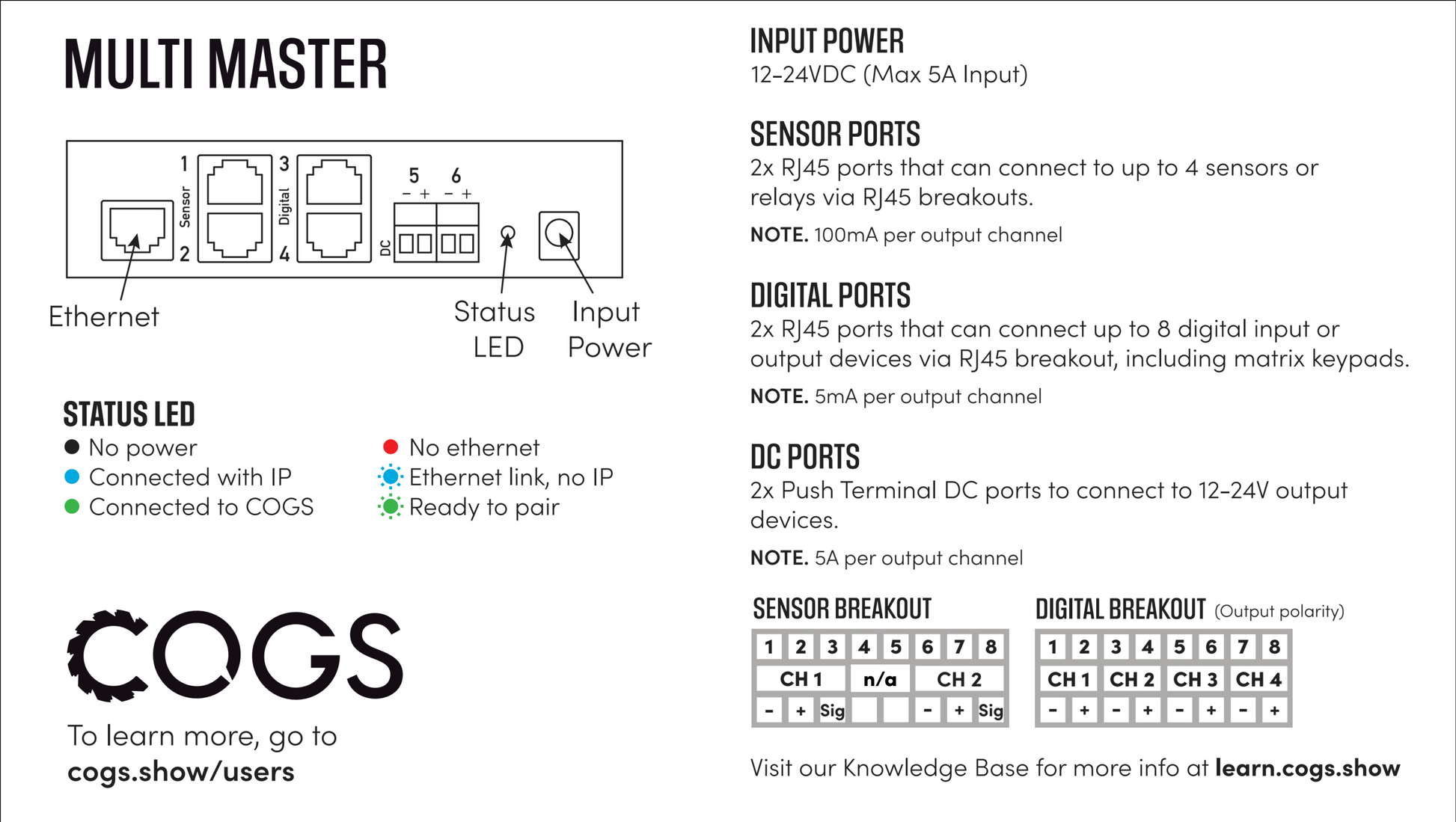

Combines the functionality of a Digital Master, Sensor Master, and DC Master. Managing up to 4x Sensor, 8x Digital and 2 DC channels.

Power: 12-24V DC 5A Max (2.1mm socket. Tip positive)

Sensor Ports:
Sensor Input channels: up to 4 - using 2x RJ45 ports connected to RJ45 Breakouts (sold separately) via ethernet cables (not included).

OR Digital Output channels: up to 4 - as above (5v. output)

Digital Ports:
Digital Input channels: up to 8 - using 2x RJ45 ports connected to RJ45 Breakouts (sold separately) via ethernet cables (not included).

OR (NEW) Matrix Keypad channels: up to 8 - using 2x RJ45 ports connected to RJ45 Breakouts (sold separately) via ethernet cables (not included). The Multi Master allows you to connect up to 4x4 Matrix Keypads (16 keys). Watch the Matrix Keypad tutorial here.

OR Output channels: 8 - as above (5v. Max 5ma per channel)

DC Ports:
Output channels: 6x push terminal (Max 5A per channel)

Made in the UK
