Reed Switch - Cylindrical 6mm (Long Tail)

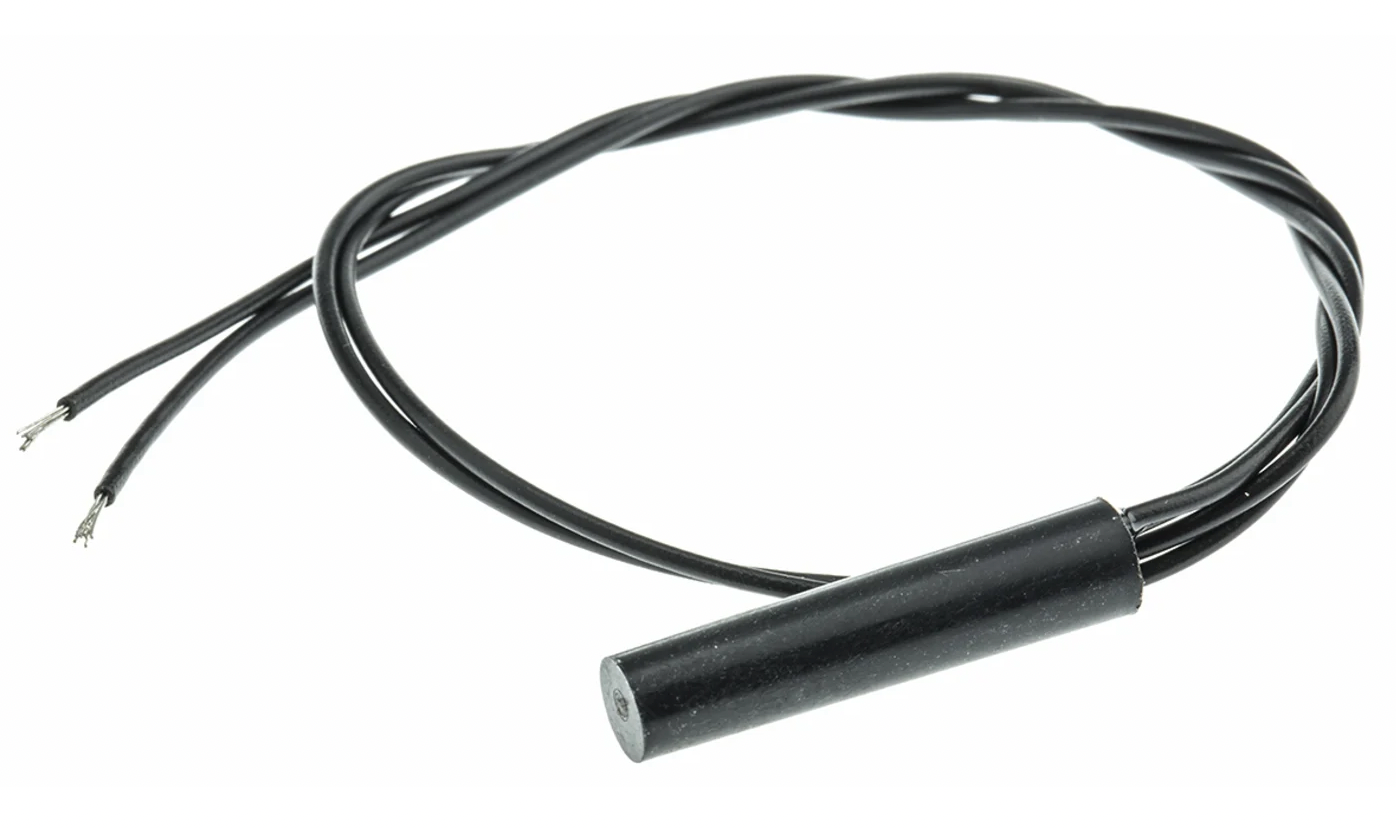

Cylindrical Reed Sensor, 6 mm Diameter

Magnetically operated reed proximity switches in a 6.0 mm diameter miniature module, fitted with interconnect cable. These switches are suitable for various applications including position and limit switch, end position sensing and machinery safety and control.

The sensor should be mounted on a fixed surface with the actuating magnet on the moving surface. By presenting or removing the magnetic field determines the closing and opening of the reed switch.

Reed switches are a type of industrial switch and are used to interrupt or redirect the flow of electricity within a circuit. Reed switches are composed of two ferrous reeds in a small glass casing. The switches are magnetised and move when the magnetic field is moved towards the switch. A reed switch can turn on or off when a magnetic field is nearby.

FEATURES:
Miniature module fitted with interconnect cable
N/O (normally open contacts) with no magnet present
Cable material PVC
Cable length 300 mm
