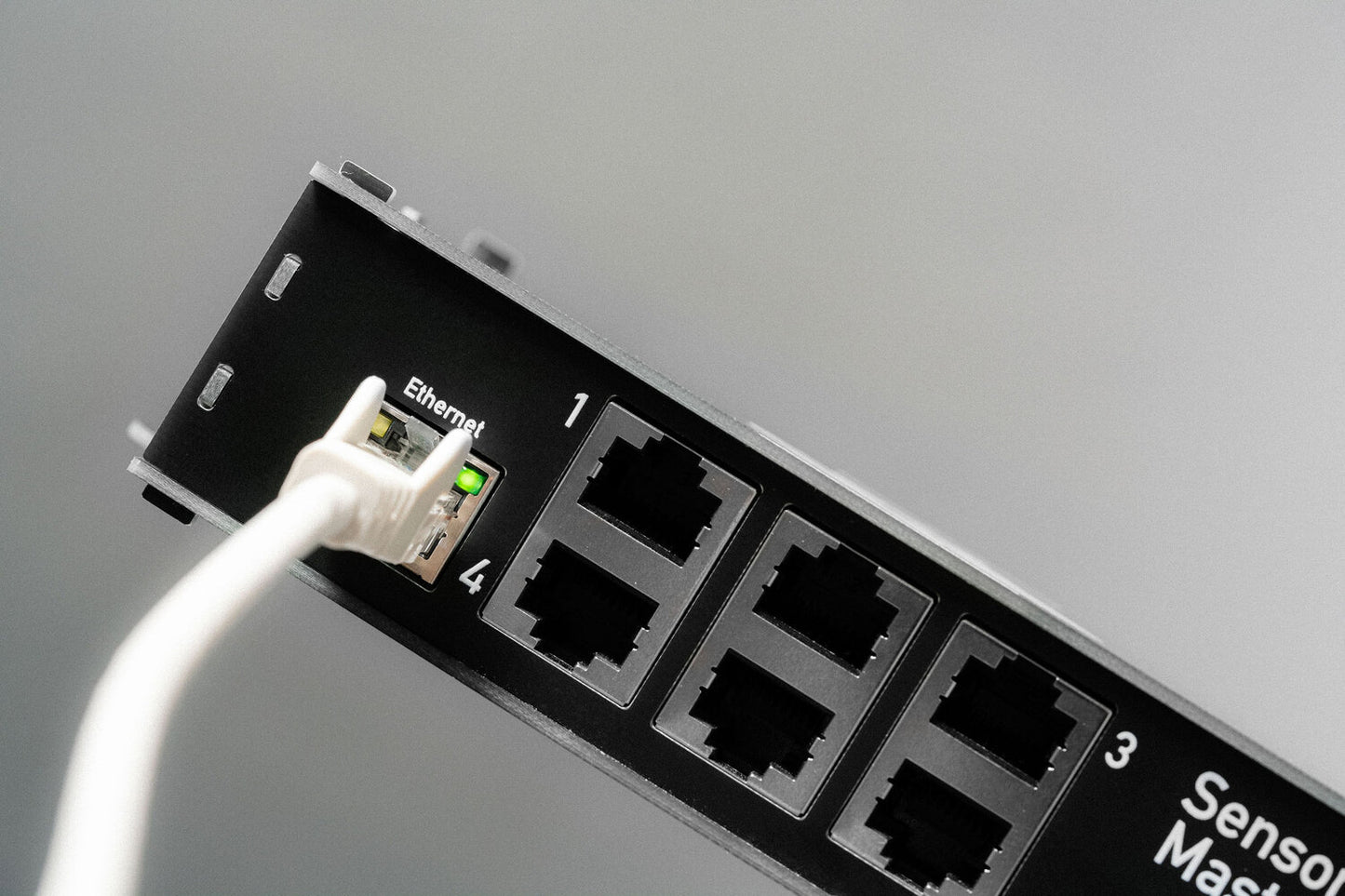

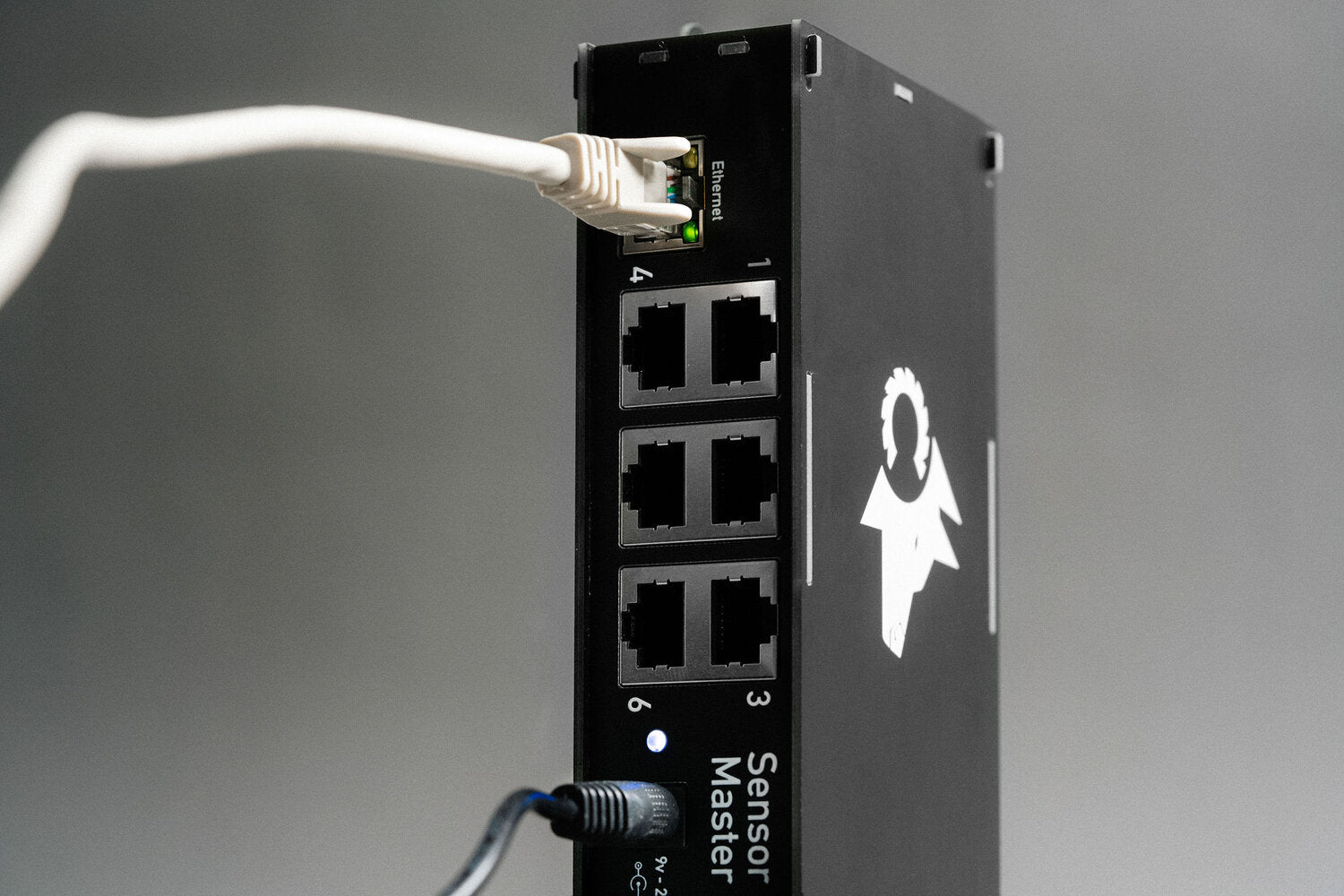

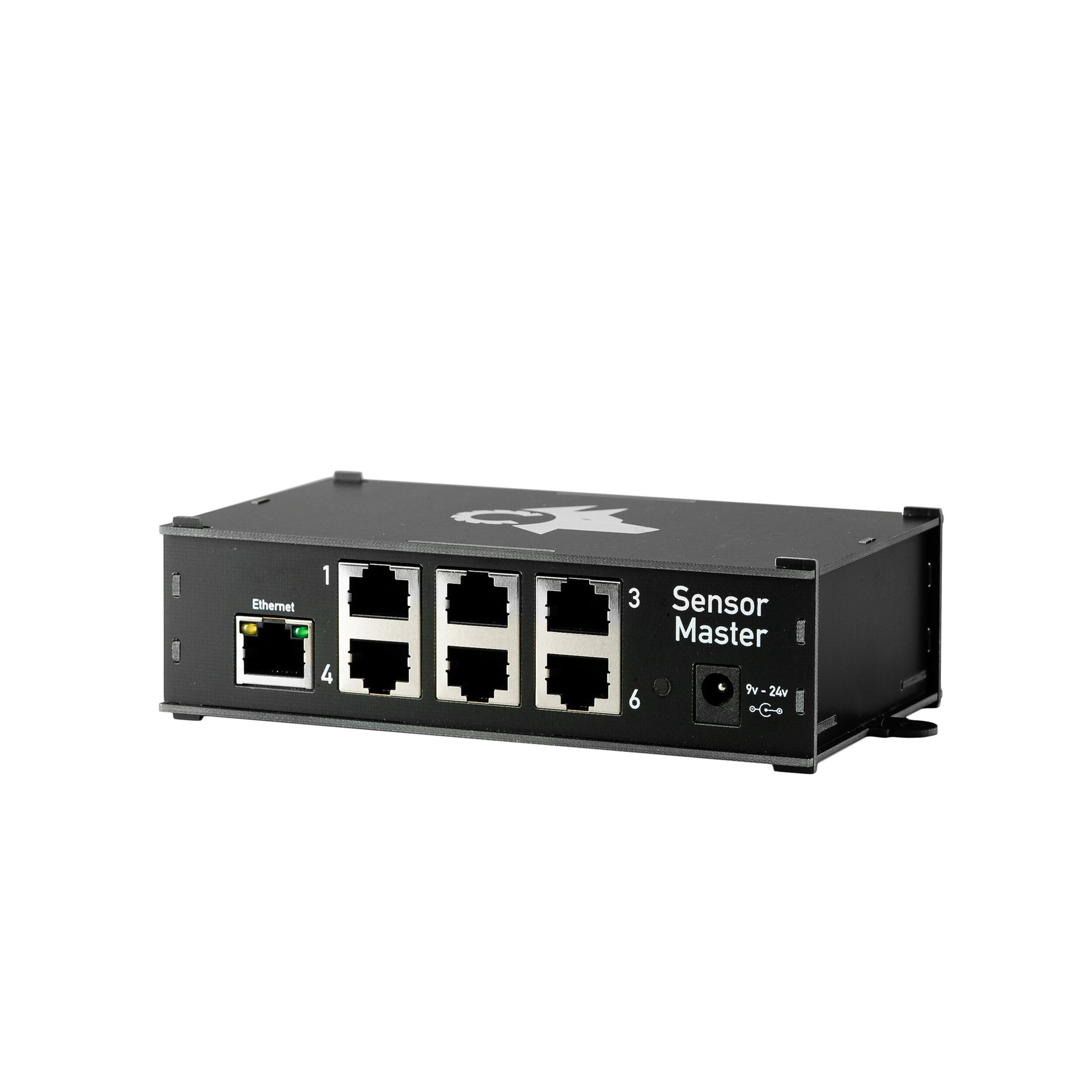

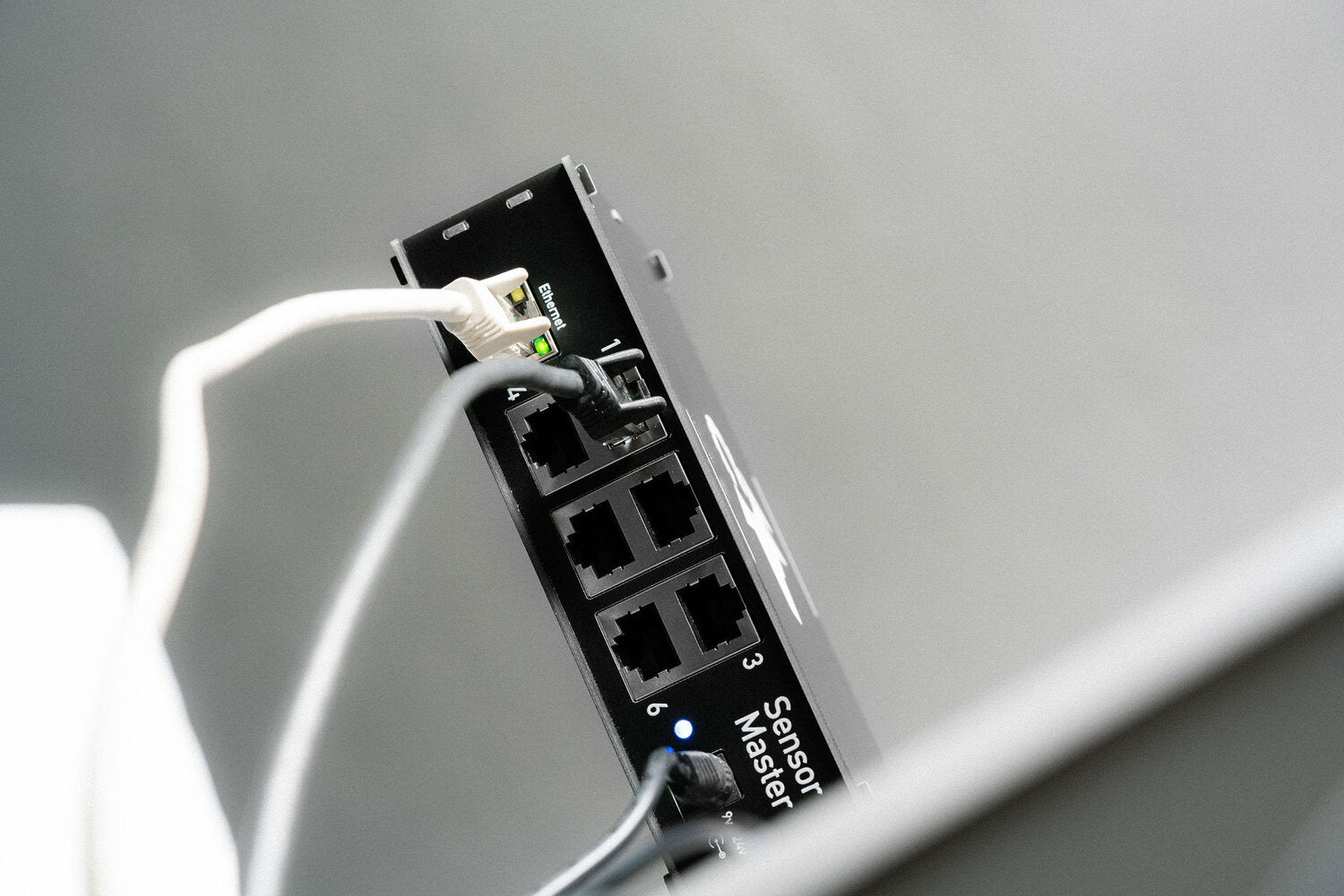

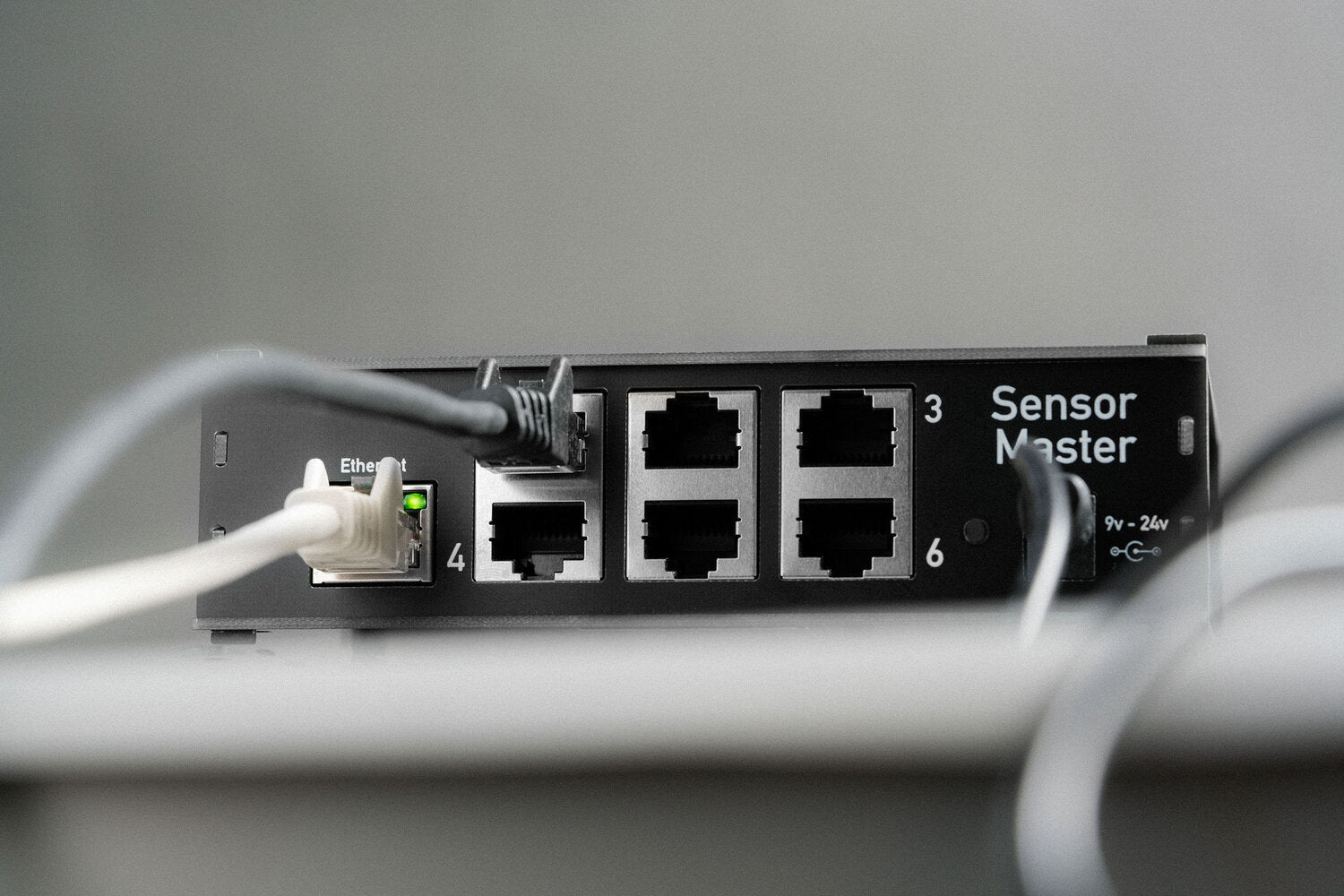

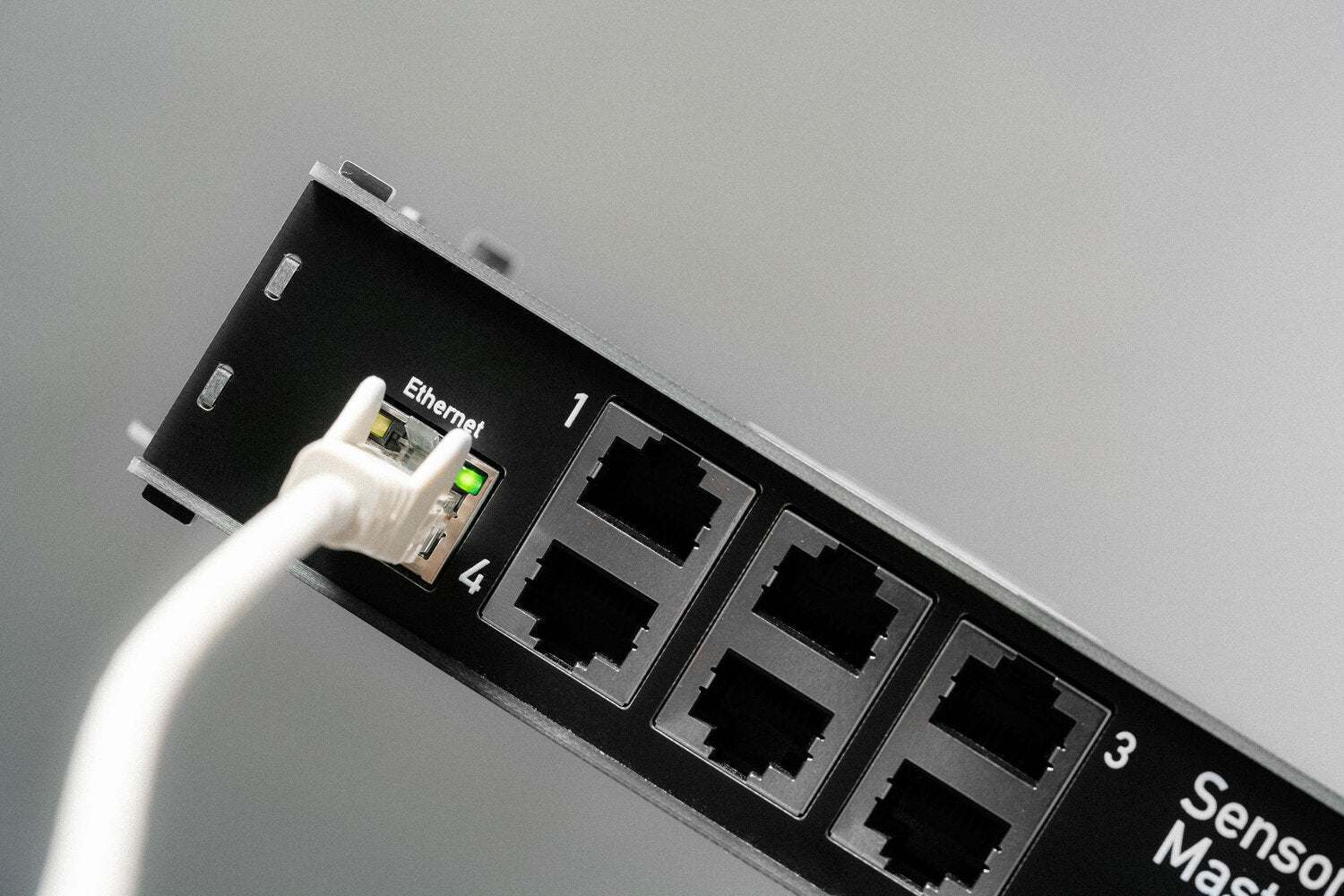

Sensor Master

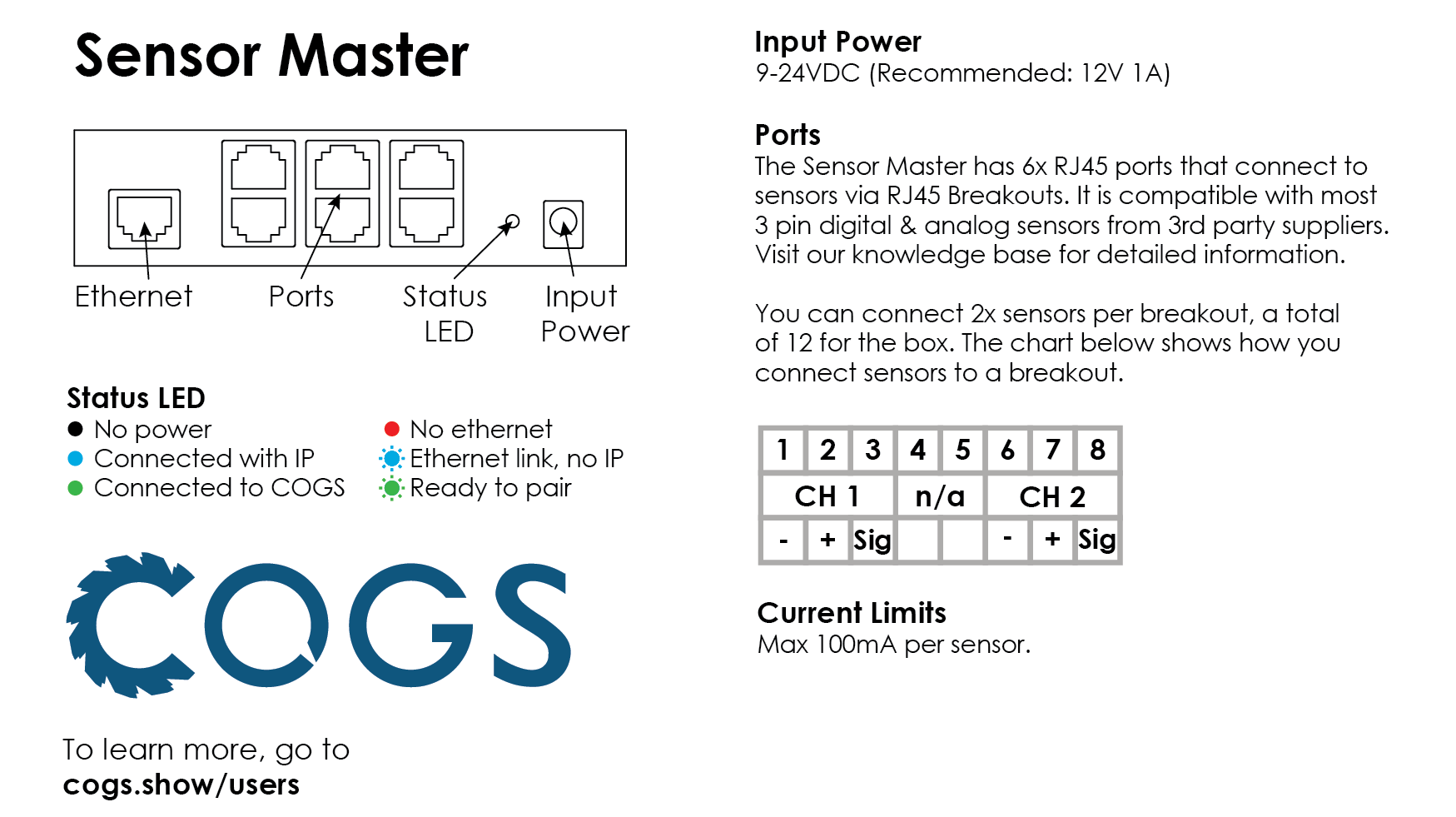

Manages up to 12 analog/digital sensors with the 3-pin structure: signal, 5v, GND.

Recommend use with the Gravity series of sensors from DFRobot (see below)

Power: 9-24v DC 1A (2.1mm socket. Tip positive)

Compatible power supply sold separately - 12V 1A PSU

Input channels: 12 - using 6x RJ45 ports connected to 6x RJ45 Breakouts (sold separately) via ethernet cables (not included)

Watch the Sensor Master tutorial here.
