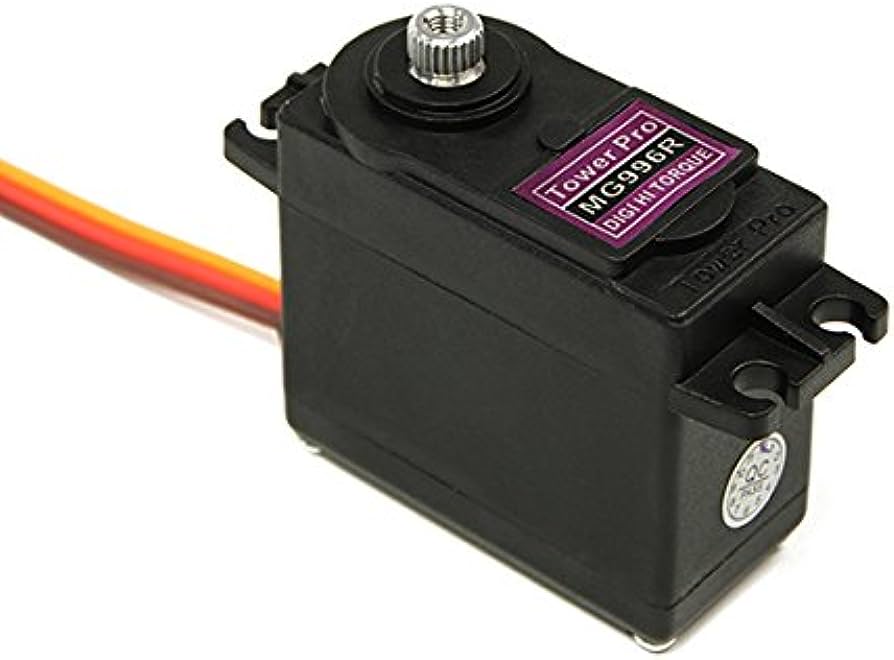

TowerPro Servo Motor - MG996R 180° (Metal Gear) + Bracket

The MG996R Digital Servo from TowerPro features all-metal gearing resulting in 10kg torque and 55g weight.

This is a custom-made 180° version of the MG996R servo, which can rotate approximately 180°.

The MG996R is essentially an upgraded version of the famous MG995 servo and features upgraded shock-proofing and a redesigned PCB and IC control system that make it much more accurate than its predecessor. The gearing and motor have also been upgraded to improve dead bandwidth and centering!

The unit comes complete with ~30cm wire and a 3-pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

These Servos come with a selection of horns, hardware & brackets.

Features

• MG996R High-Speed Torque Digital Servo with Metal Gearing
• 180° rotation
• Genuine TowerPro product
• Includes a selection of horns and screws for different applications
• Operating Voltage: 4.8 to 6.6V
• Operating Temperature Range: 0°C to 55°C
• Operating Speed: 60/0.19 degree/second (No Load @ 4.8V)
• Operating Speed: 60/0.15 degree/second (No Load @ 6.0V)
• Stall Torque: 9.4 kg/cm @ 4.8V / Stall Torque: 11 kg/cm @ 6V
• Running Current: 500mA-900mA @ 6V
• Stall Current 2.5A @ 6V
• Gear Type: All Metal Gears
• Stable and Shock Proof Double Ball Bearing Design
• ~30cm Wire Assembled
• Weight: 55g

Wiring Guide

• Red: Battery Positive
• Brown: Battery Negative
• Orange: Signal
