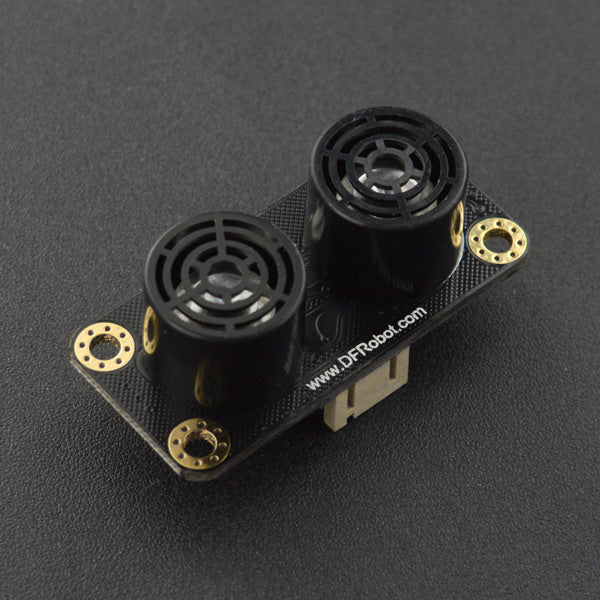

Ultrasonic Distance Sensor (2-500cm)

For use with the Sensor Master. Able to detect changes in distance from the sensor - e.g. when somebody walks in front of it.

This is an ultrasonic sensor with an open dual-probe, employing standard interface of Gravity PH2.0-3P vertical patch socket.

The sensor comes with built-in temperature compensation, which can greatly reduce measurement error caused by over high/low temperature. It adopts analog voltage output, and provides accurate distance measurement within 2-500cm with 1cm resolution and ±1% accuracy. The design of dual probe effectively decreases the dead zone. Users can check the measurement process conveniently by the onboard indicator.

Specification

• Power Supply: 3.3~5.5V DC
• Operating Current: 20mA
• Operating Temperature: -10℃～＋70℃
• Measurement Range: 2cm～500cm
• Resolution: 1cm
• Accuracy: 1%
• Acoustic Frequency: 38~42KHz
• Frequency: 30Hz Max
• Dimension: 47mm × 22 mm/1.85×0.87”
• Distance Formula: Distance=Vout(mV)×520/Vin(mV)

Measuring Angle

Board Overview
